The polyester folding filter material of the Replace Parker EAC10P020 Air filter has stable dust holding capacity, continuously blocking environmental dust from entering the oil tank, reducing oil pollution, and delaying hydraulic component wear. The overall structure does not contain metal components, simplifying the waste disposal process. The integrated sealing structure prevents unfiltered air from bypassing into the fuel tank and resists a small amount of splashing water outdoors. The cylinder body is compact, with low ventilation resistance, ensuring dynamic balance of oil tank pressure and effectively extending the service life of hydraulic oil and system components.
Applicable locations:
In the field of construction machinery: hydraulic oil tank ventilation protection for excavators, loaders, and mining mobile equipment
Energy industry: Wind power hydraulic station, lubricating oil station, oil tank breathing protection unit
General manufacturing: hydraulic workstations, injection molding equipment, die-casting unit oil tanks
Metallurgical industry: hydraulic oil tank ventilation and filtration device for rolling mills and continuous casting equipment
Other scenarios: Mobile hydraulic equipment, outdoor industrial equipment, oil storage tanks
1) Same shell universal filter element (completely universal in external dimensions): EAC10W015, EAC10G010
Tip: Different types of filter materials and precision may vary and cannot be interchanged arbitrarily.
2) Alternative model: EAC10P020, with consistent external dimensions and structural parameters, available for selection reference.
3) Important reminder for replacement selection: The outer diameter, total length, and central inner hole size must match; Polyester filter material cannot be cleaned or regenerated; Regularly check the ventilation status and replace blockages in a timely manner.
Packaging and Transportation:
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
Related models:
EAC10P020、EAC10W015、EAC10G010、EAC20P020、EAC20W015
EAC20G010、EAC30P020、EAC30W015、EAC30G010、EAC10P025
EAC40P020、EAC40W015、EAC40G010、EAC50P020、EAC50W015
Technical data

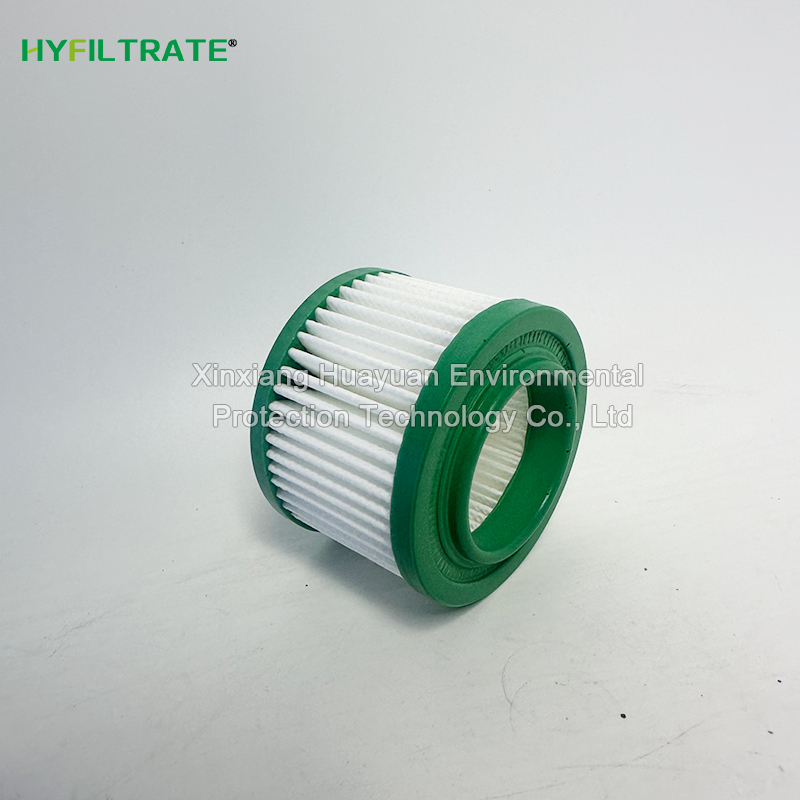

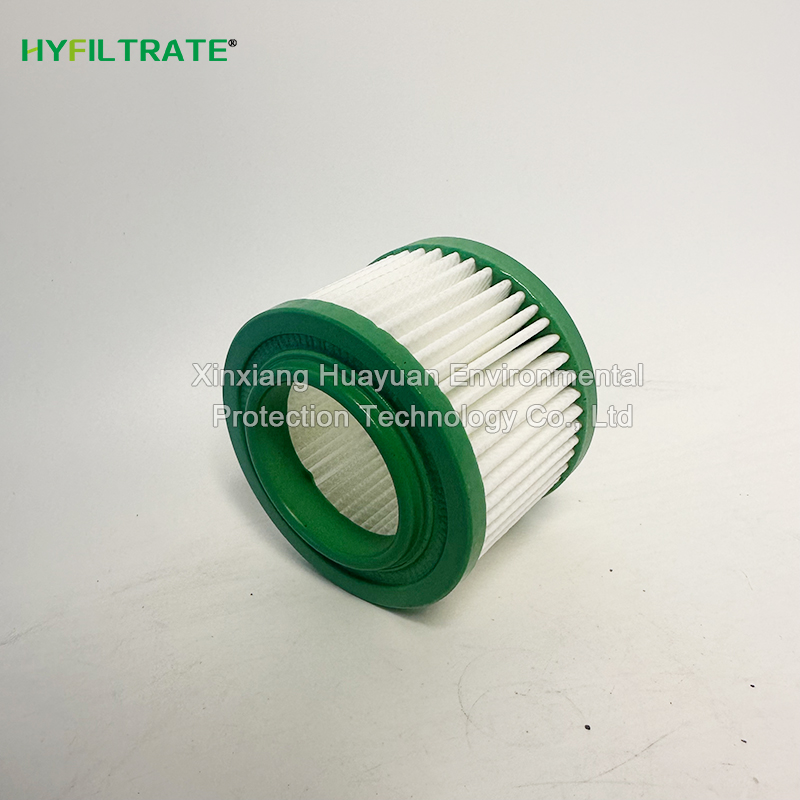

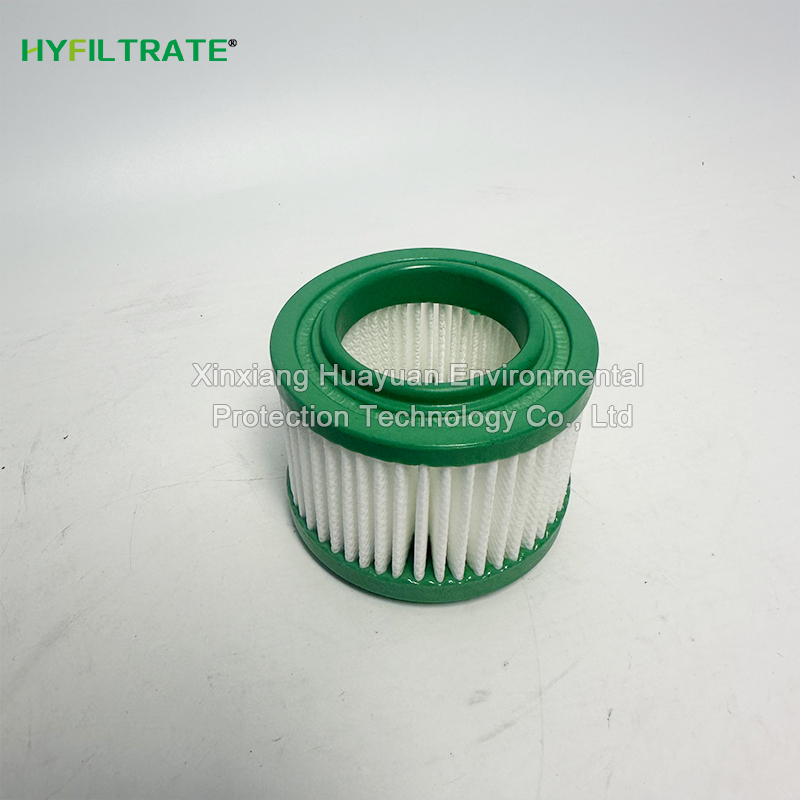

Replace Parker EAC10P020 air filter
Filter material: Polyester filter material
Filtering accuracy: 2 μ m absolute filtering accuracy
Purpose: Hydraulic oil tank top respirator (breathable cap filter element), to isolate external dust and water vapor from entering the oil tank and balance the oil tank pressure
Working temperature: -20 ℃~+80 ℃
Protective function: It blocks dust, moisture, water mist, and small particles from entering the hydraulic oil tank, preventing oil from absorbing water, emulsifying, and contaminating the hydraulic oil with dust
Why choose HYFILTRATE?
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
