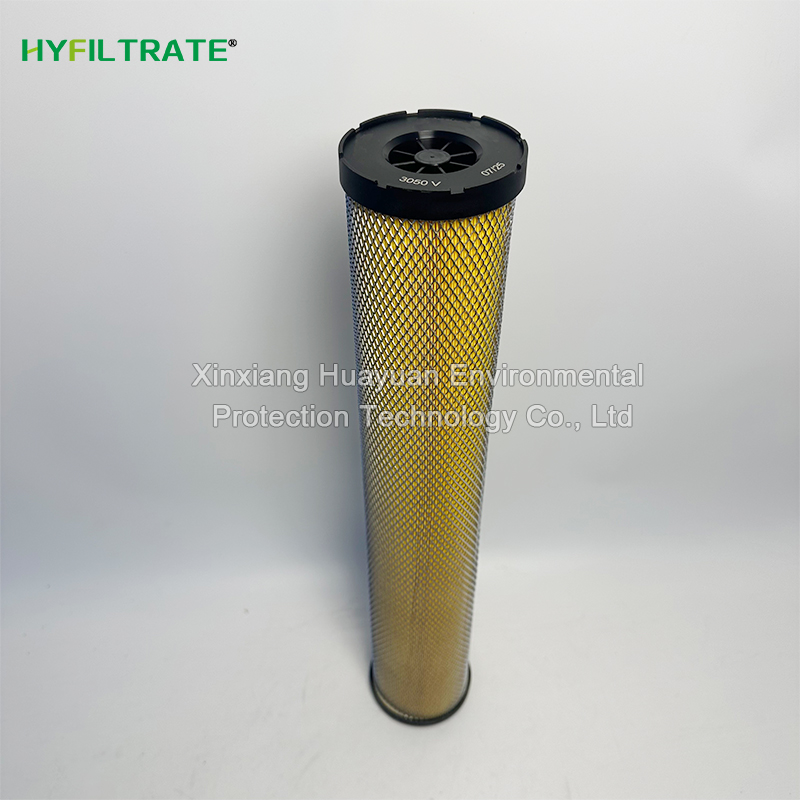

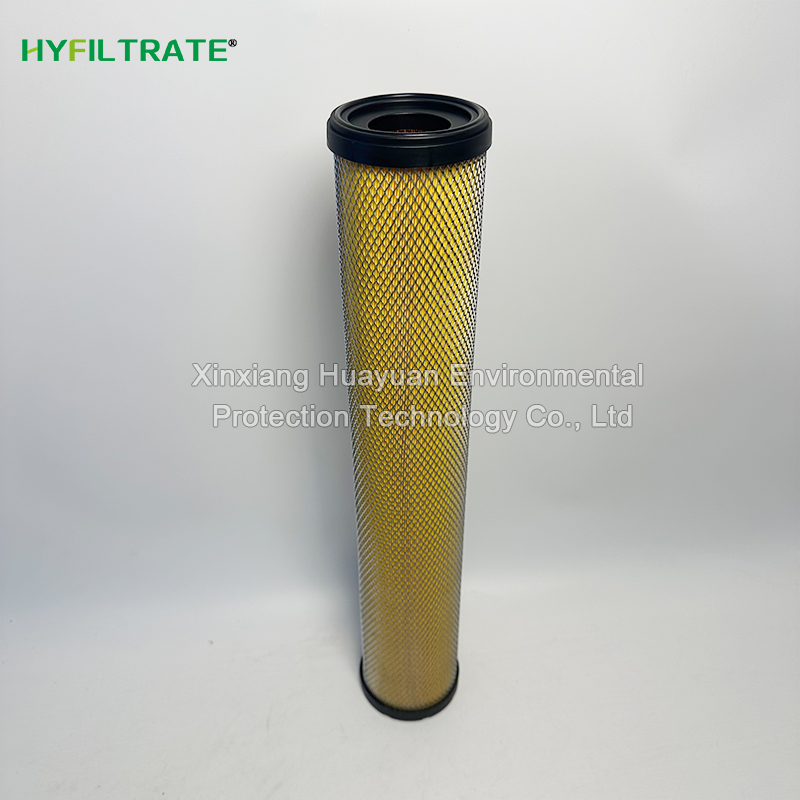

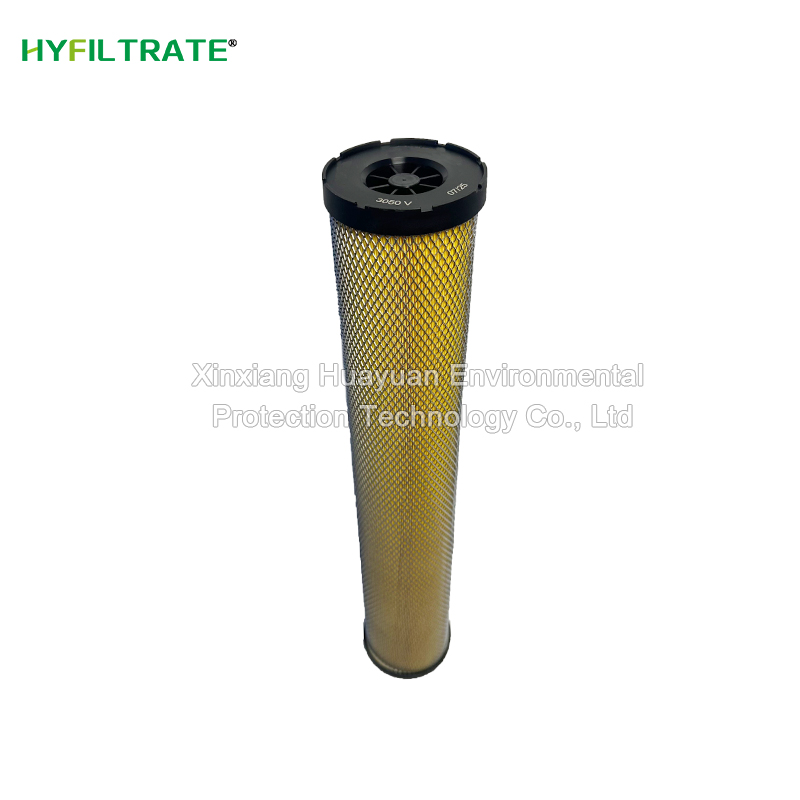

Replace Parker 3050 V air compressor precision filter element

Description:: The Replace Parker 3050 V air compressor precision filter element utilizes gradi

Share With:

The Replace Parker 3050 V air compressor Precision filter element utilizes gradient fiberglass filter material specifically designed to trap solid dust and rust impurities in compressed air, thereby protecting the downstream fine filter element and reducing the load on subsequent filter elements. The filter material boasts a stable structure, resisting deformation under airflow fluctuations and maintaining a low initial pressure drop. Its standard quick-connect structure facilitates easy disassembly and assembly. Typically positioned upstream of the dryer and fine filter, this element prevents large particulate contaminants from rapidly clogging high-precision filter elements, extending the maintenance interval of the entire air source filtration system. It ensures stable and clean air supply for spraying, laser cutting, and automation equipment, reducing the likelihood of malfunctions in downstream pneumatic components.

Applicable places:

General manufacturing: Air source pretreatment for laser cutting and automated spraying production lines

Air compressor system: pre-filtering before the dryer

Rubber and plastic industry: pneumatic control air source for blow molding and extrusion equipment

Food and Pharmaceuticals: Primary purification of air source for packaging equipment

Other scenarios: plasma equipment, air source filtration for pneumatic tools

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

3050V, 3050ZP, 3050XP, 3050A, 2050V

2050ZP, 2050XP, 2050A, 5075V, 5075ZP

5075XP, 5075A, 1250V, 1250ZP, 1250XP

Technical data

Replace Parker 3050 V air compressor precision filter element

Filter material: multi-layer hydrophobic fiberglass filter material; airflow direction from outside to inside

Filtration accuracy: 3μm solid particle filtration; particle retention efficiency 99.95%

Seal: Oil-resistant NBR rubber seal ring

Operating temperature: 2~80℃; maximum working pressure: 45bar

Support structure: Anti-corrosion support framework, resistant to airflow impact

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
