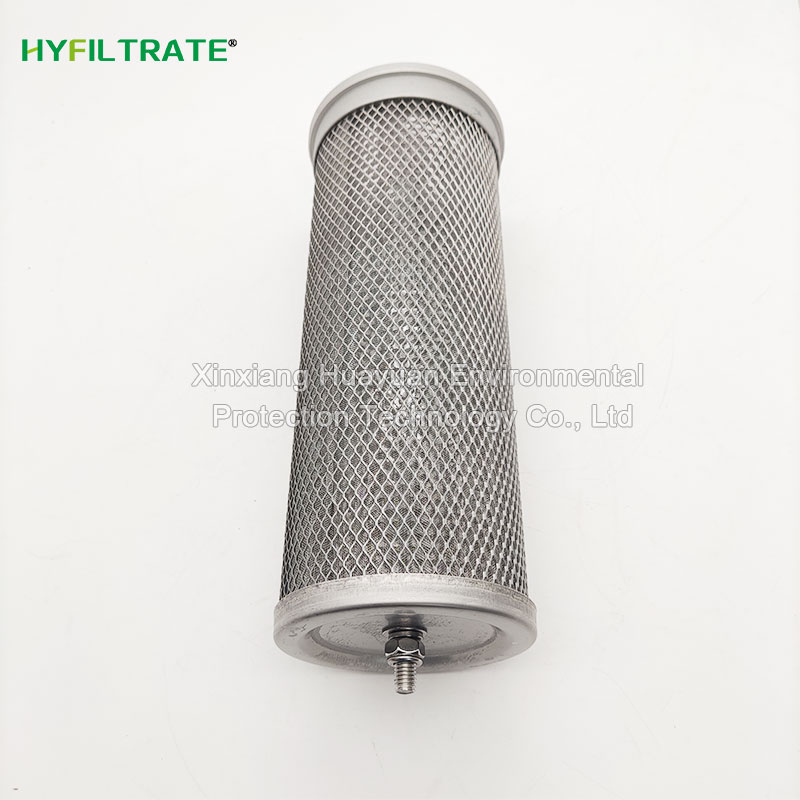

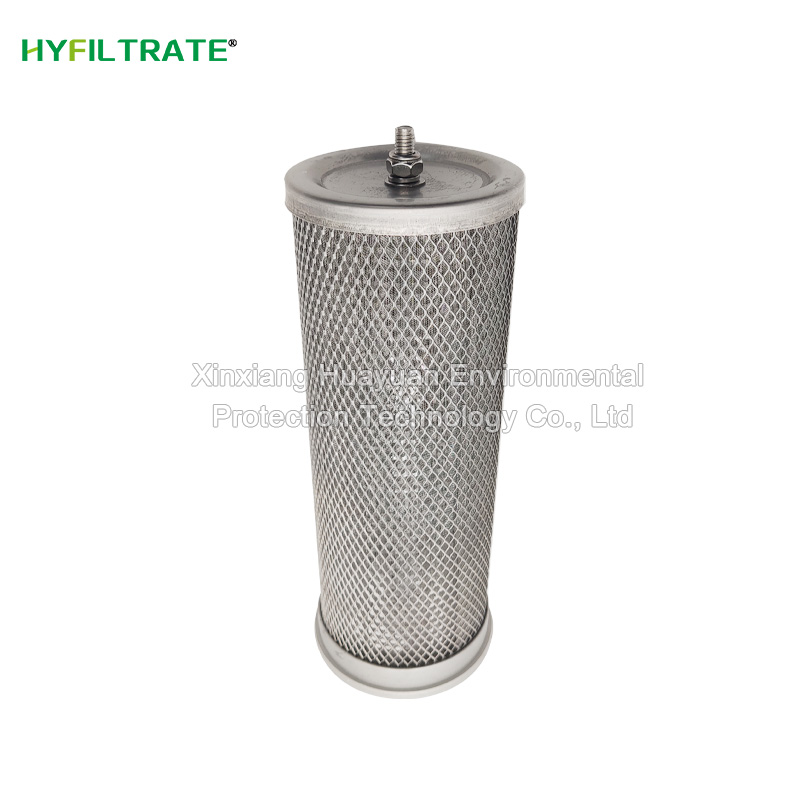

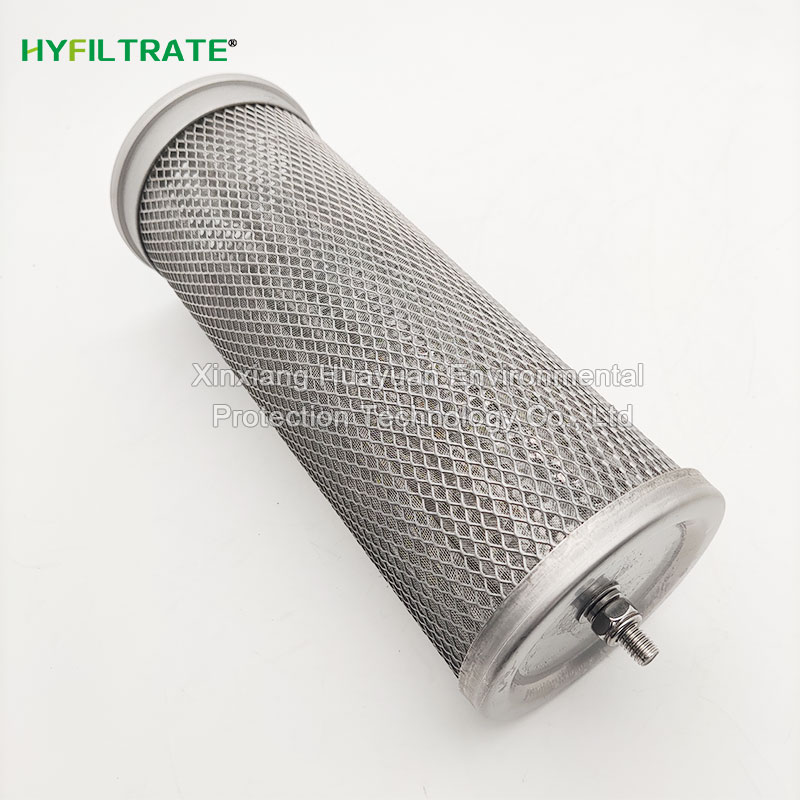

KS-80 Diffuser

Description:

The KS-80 diffuser exhibits excellent gas diffusion efficiency. It adopts a spec

Model: KS-80

Brand: HYFILTRATE

Filtration accuracy: 30um

Size: Standard size

Share With:

The KS-80 diffuser exhibits excellent gas diffusion efficiency. It adopts a special porous structure design, which can evenly disperse gas into liquid and significantly improve the gas-liquid contact area. This design not only improves mass transfer efficiency, but also reduces energy consumption. Compared with traditional diffusion devices, the gas utilization efficiency of KS-80 diffuser can be increased by more than 30%, especially in processes that require a large amount of gas participation such as sewage treatment and chemical reactions. This efficient diffusion characteristic is particularly important.

Technical data

Ventilation rate: The rated processing capacity is 80m ³/h, the maximum withstand pressure is 0.6MPa, and the pressure loss is controlled within ≤ 3kPa.

Diffusion efficiency: The bubble diameter can be adjusted from 0.5-2mm, and the oxygen transfer efficiency is over 35%, which is 15% better than similar products in the industry.

Material composition: The main body is made of 316L stainless steel or titanium alloy material, which has excellent corrosion resistance and can withstand chemical environments with pH values of 2-12. The long-term use temperature range is -20 ℃ to 200 ℃.


TAG: Silencer
