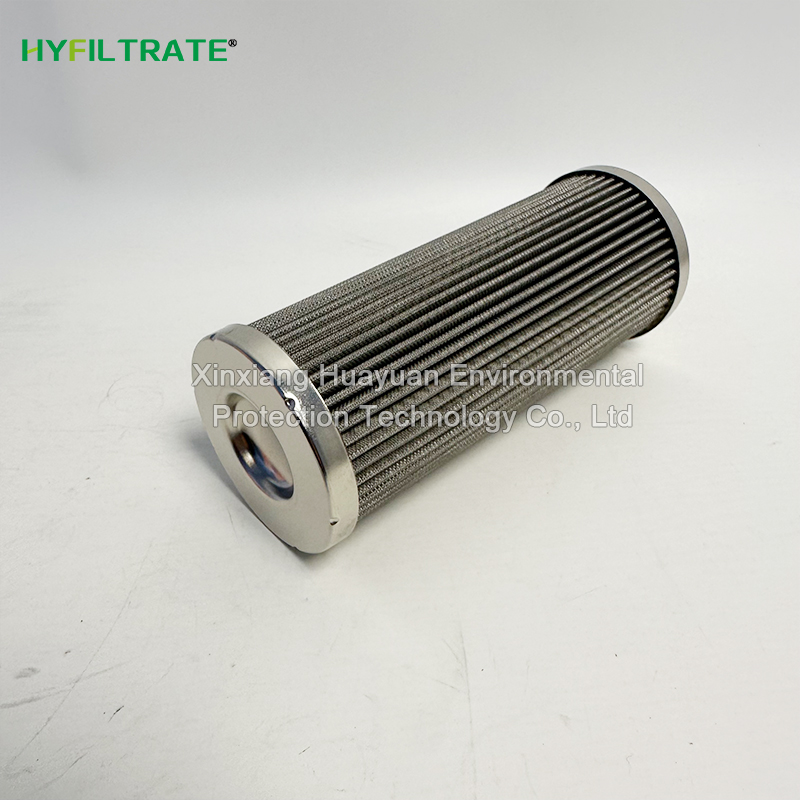

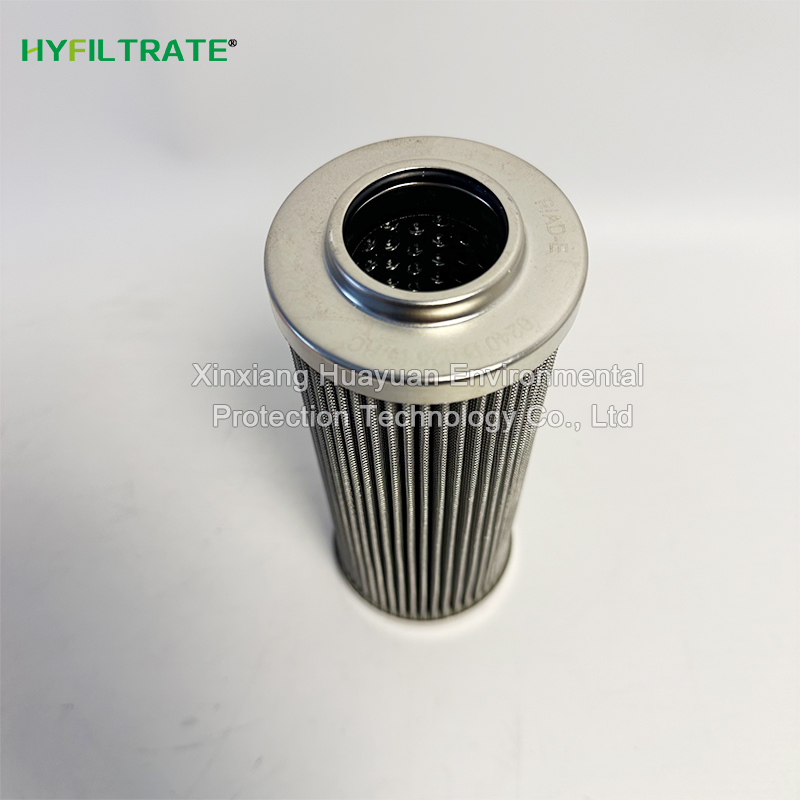

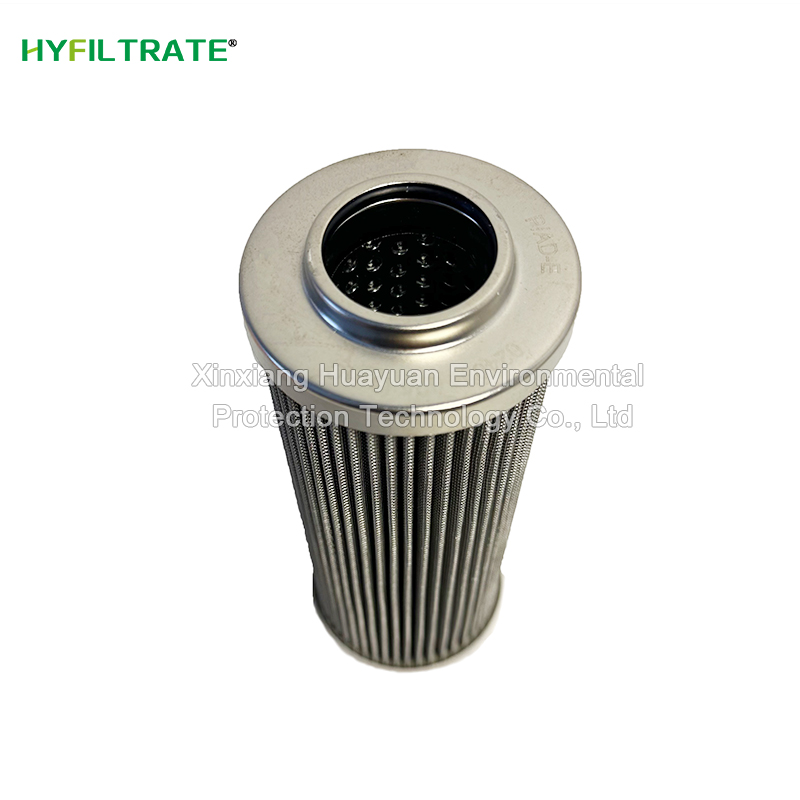

Replace HYDAC 316416 0240 D 025 W/HC hydraulic oil filter element

Description:: Replace HYDAC 316416 0240 D 025 W/HC hydraulic oil filter element as a pre coars

Share With:

Replace HYDAC 316416 0240 D 025 W/HC Hydraulic oil filter element as a pre coarse protection filter for hydraulic systems, effectively intercepting welding slag, rust particles, and hard impurities, and reducing the load on high-precision fiberglass filter elements at the back end. The Metal Filter screen has high mechanical strength, is not easily damaged under pressure fluctuations, and does not have fiber shedding and pollution of the oil circuit; Support multiple cleaning and reuse, long-term reduction of consumables costs. Widely used in metallurgy, large hydraulic stations, shield tunneling, wind power, CNC machine tool hydraulic oil circuits, to protect plunger pumps and servo valves, and extend the service life of the entire hydraulic filtration system.

Applicable locations:

Power industry: wind power hydraulic system, turbine oil lubrication station

Metallurgical industry: Pre protection of hydraulic circulation system for rolling mills and continuous casting units

Engineering machinery: shield tunneling machines, mining equipment, large lifting equipment oil circuits

General industry: large hydraulic stations, die-casting equipment, precision CNC machine tools

Other scenarios include ship hydraulic systems, lubricating oil stations, and hydraulic test benches

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

316416, 316412, 316420, 1269175, 1269177

316414, 1269179, 1269181, 316424, 1269183

316408, 1269169, 316430, 1269187, 316404

Technical data

Replace HYDAC 316416 0240 D 025 W/HC hydraulic oil filter element

Filter material: multi-layer folded stainless steel woven filter screen; Flow direction: from outside to inside

Filtering accuracy: 25 μ m; No fiber shedding, supports low-pressure blowing, cleaning and regeneration

Anti collapse pressure difference: 21 bar

Sealing element: NBR nitrile rubber

Working temperature: -25 ℃~+110 ℃

Supporting structure: Anti corrosion steel perforated inner and outer supporting skeleton, resistant to pressure pulsation impact

Suitable media: mineral hydraulic oil, lubricating oil, water ethylene glycol medium
