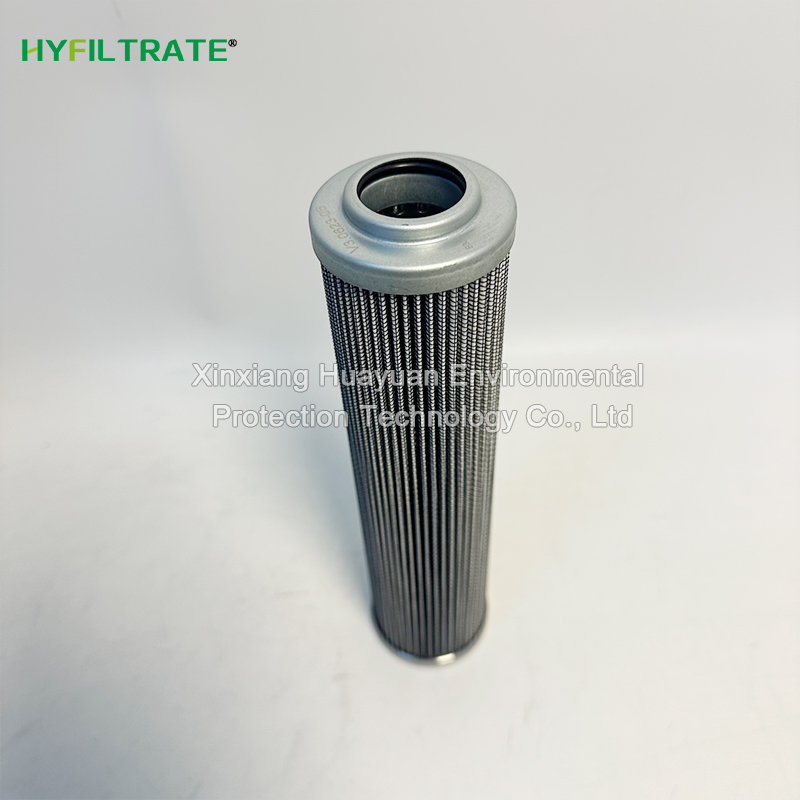

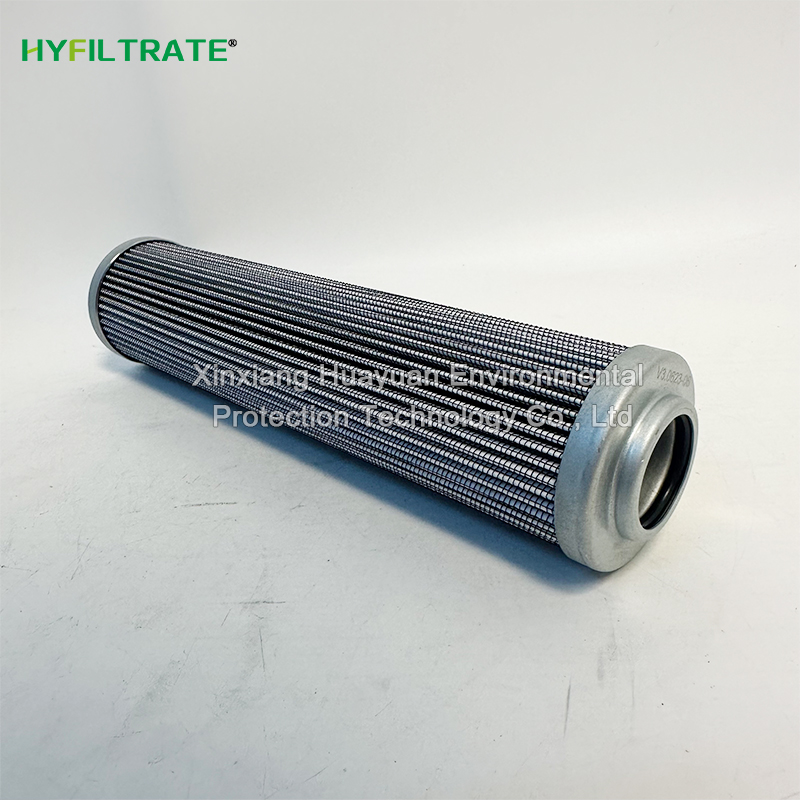

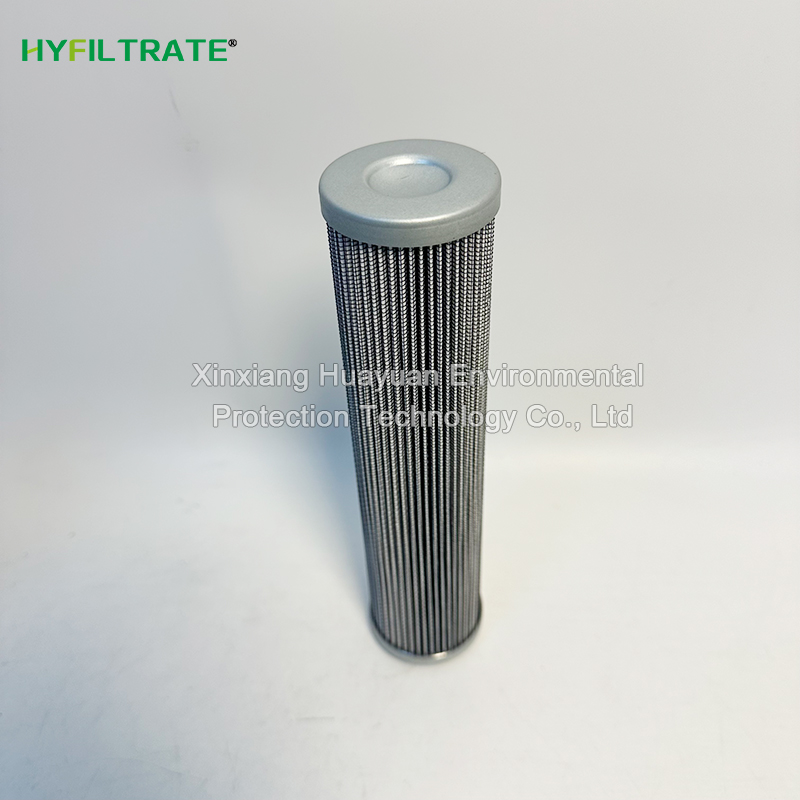

The replacement ARGO HYTOS V3.0623-06 hydraulic oil filter element uses high-pre
Model: V3.0623-06
Filtration Accuracy: 6μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 56mm
High: 235 mm
The replacement ARGO HYTOS V3.0623-06 Hydraulic oil filter element uses high-precision fiberglass material, which can filter out micron sized hard particles, greatly reducing the wear, jamming, and internal leakage problems of servo valves, proportional valves, and plunger pumps, and reducing the cost of hydraulic component maintenance and replacement. It is commonly used for key oil circuit protection in control systems. Its compact cylinder size saves installation space, with a dense star shaped pleated design inside, sufficient effective filtration area, excellent storage capacity per unit volume, and stable replacement cycle under industrial 24-hour continuous operation conditions.
Replace ARGO HYTOS V3.0623-06 hydraulic oil filter element
6 μ m depth gradient fiberglass filtration, multi-stage layer by layer interception of fine metal abrasive particles, oil sludge colloids, and sealing debris; Anti static modification treatment of filter material, reducing static adsorption and pollution accumulation, and delaying the rise of pressure difference.
Working temperature range: -30 ℃~+110 ℃
Standard NBR nitrile sealing ring; The working conditions are phosphate ester EH fire-resistant oil and high-temperature synthetic oil, and FKM fluororubber version can be selected
Compatible media: mineral hydraulic oil, gear lubricating oil, water ethylene glycol flame retardant fluid
