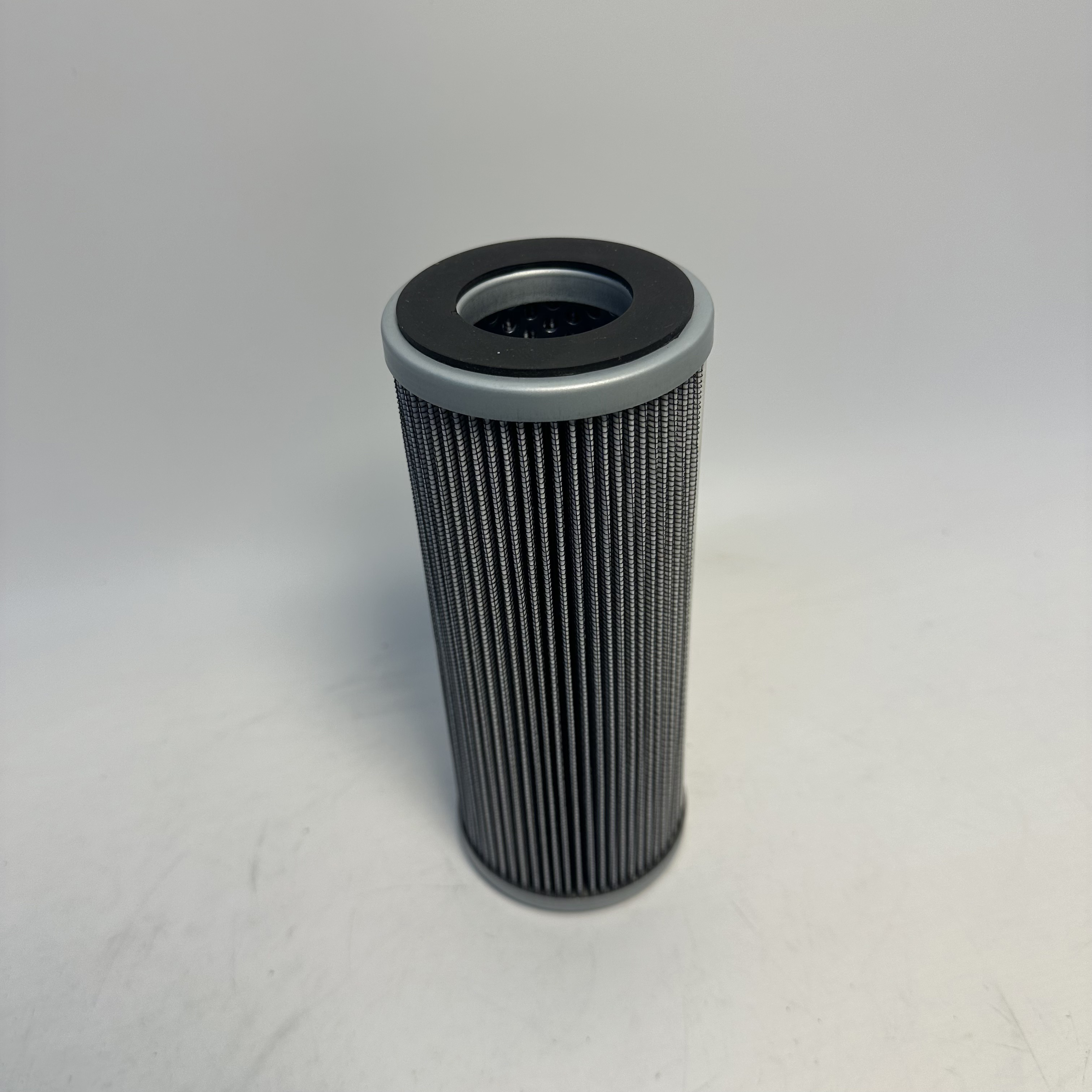

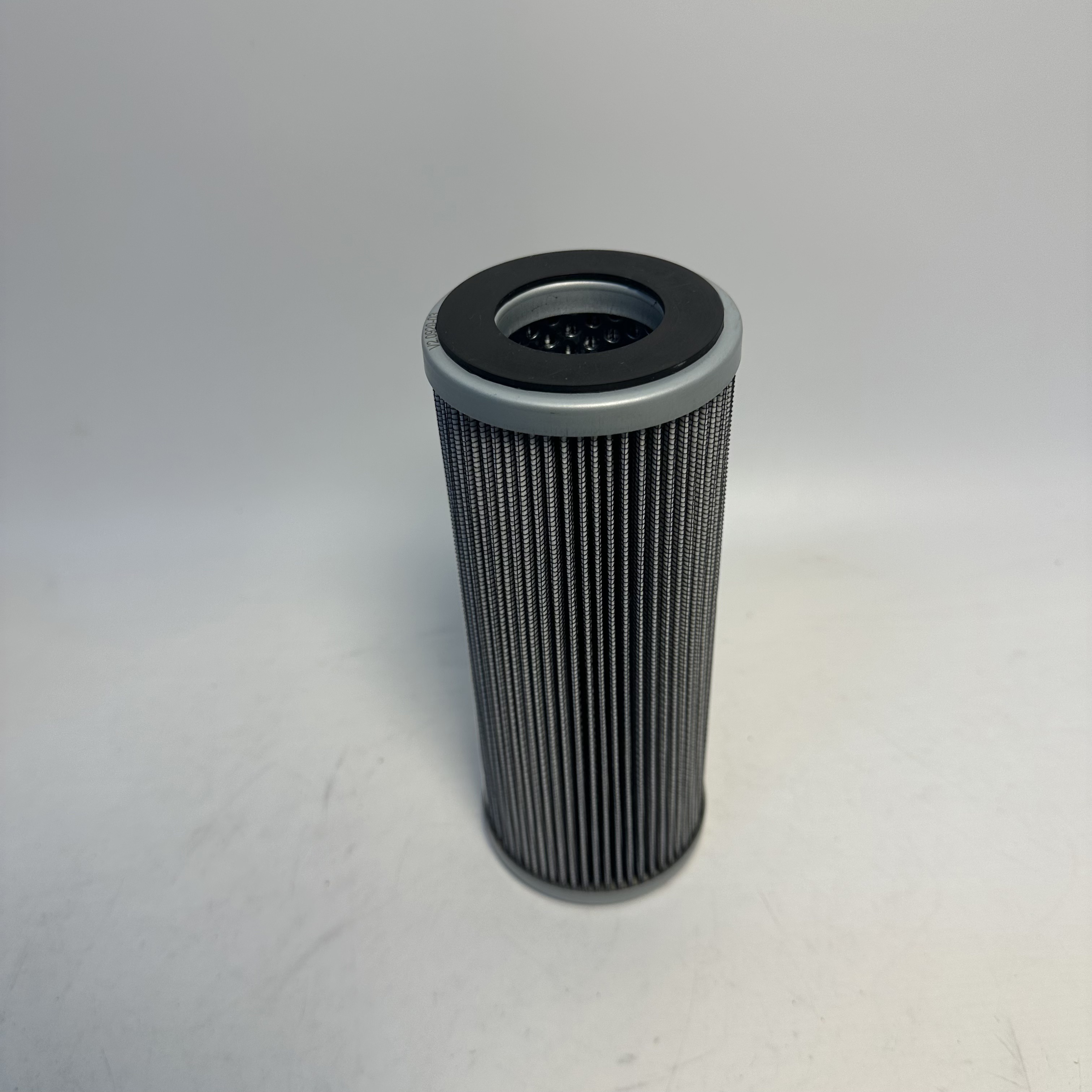

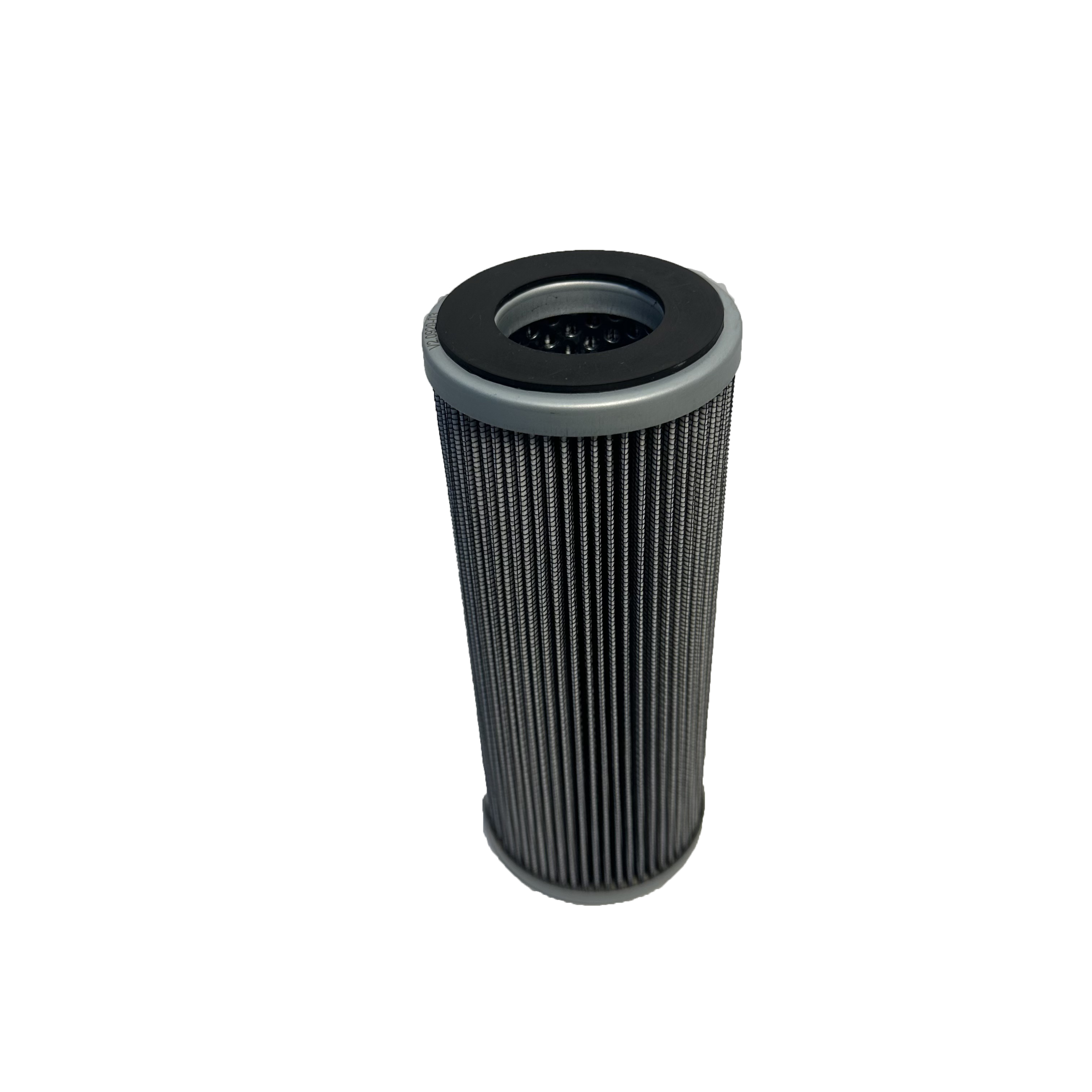

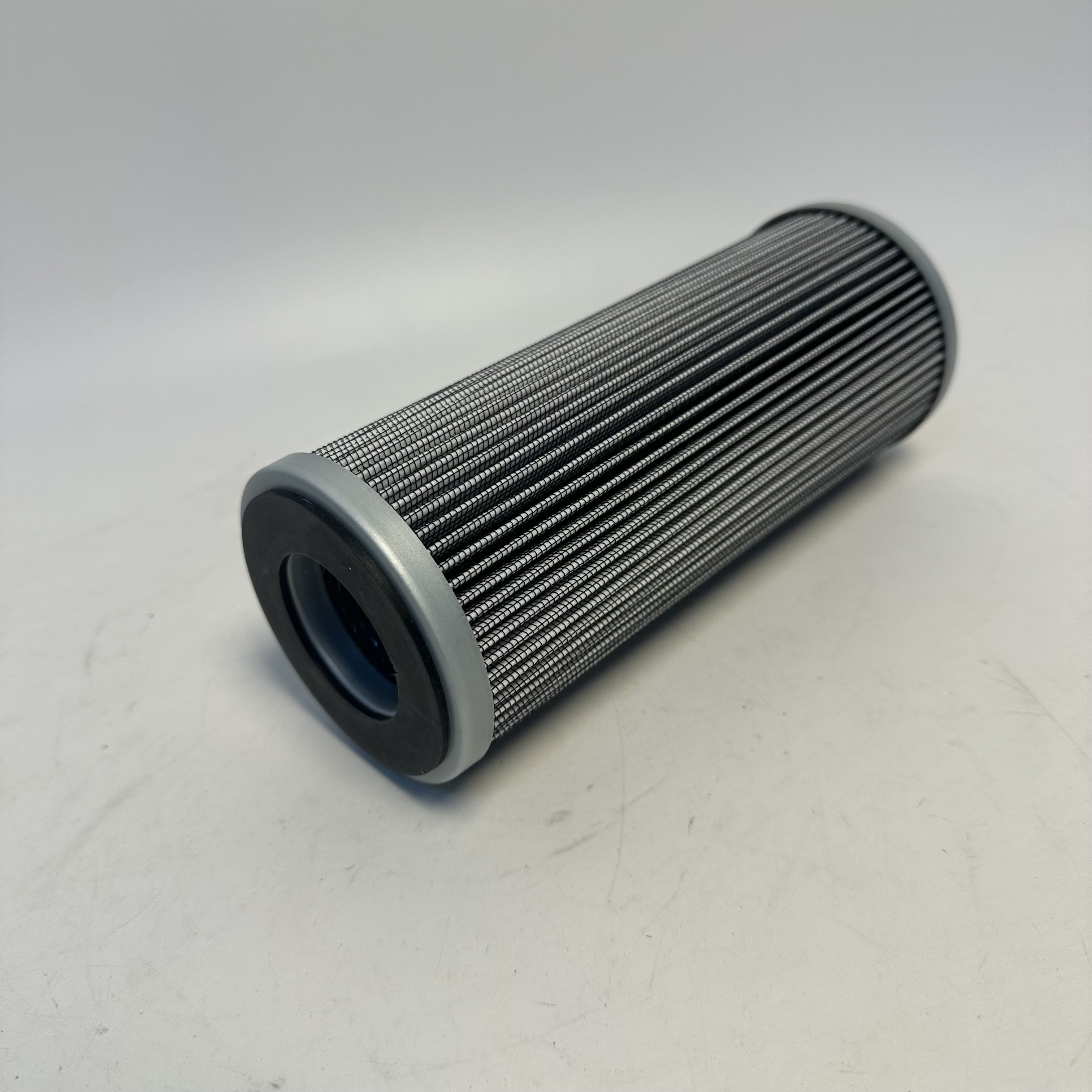

The gradient multi-layer filter layer of Replace ARGO HYTOS V2.0920-03 hydraulic
Model: V2.0920-03
Filtration Accuracy: 3μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 92 mm
High: 290 mm
The gradient multi-layer filter layer of Replace ARGO HYTOS V2.0920-03 Hydraulic oil filter element has a considerable dirt holding capacity, continuously capturing metal particles and oxide deposits in the oil circuit, maintaining stable oil cleanliness standards, and reducing the probability of wear and jamming of precision hydraulic components. The stainless steel support cylinder maintains the stability of the filter layer structure and can withstand long-term pressure fluctuations and loads. The integrated sealed end cap reduces the risk of medium leakage, and the compact structure of the cylinder makes it easy to arrange in small spaces, effectively extending the operation and maintenance cycle and ensuring the continuous and stable operation of the entire fluid power system.
Energy sector: Hydraulic control system for wind turbines, lubricating oil purification device
Metallurgical industry: High pressure hydraulic circulation circuit in hot rolling production lines and continuous casting equipment
Engineering equipment: shield tunneling equipment, mining machinery, main control oil circuit of large lifting machinery
Intelligent manufacturing: centralized hydraulic workstation, die-casting unit, high-precision CNC equipment
Other scenarios include industrial mobile hydraulic devices, lubrication circulation purification systems
1) Same shell universal filter element (completely universal in external dimensions): V2.0920-05, V2.0920-10, V2.0920-20, V2.0920-60
Tip: Different numbers correspond to different filter material accuracies and cannot be interchanged arbitrarily.
2) Equivalent substitute model: V2.0920-03, with consistent external dimensions and structural parameters, available for selection reference.
3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter cartridge cannot be cleaned or regenerated; Regularly monitor the pressure difference and investigate the system pollution source when the pressure difference suddenly rises.
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
V2.0920-03、V2.0920-05、V2.0920-10、V2.0920-20、V2.0920-60
V2.0620-03、V2.0620-05、V2.0620-10、V2.0620-20、V2.0620-60
V2.1320-03、V2.1320-05、V2.1320-10、V2.1320-20、V2.1320-60
Replace ARGO HYTOS V2.0920-03 hydraulic oil filter element
Product type: High pressure pipeline folding fiberglass hydraulic filter cartridge
Filter material configuration: Multi layer gradient porous inorganic microfiber medium, fluid is filtered from outside to inside
Filtering accuracy: 3 μ m, capturing fine solid particles inside the fluid
Capable of withstanding a maximum pressure difference of 21 bar to prevent the filter layer from being compressed, wrinkled, torn, or damaged
Sealing material: NBR nitrile rubber sealing ring, suitable for various industrial hydraulic fluids
Suitable working range: -30 ℃ to+110 ℃
Supporting structure: perforated stainless steel inner and outer sleeves to alleviate the impact of alternating pressure in the system
Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
