The Replace Donaldson P-SRF V 05/25 air filter element adopts an integrated stai
Model: P-SRF V 05/25
Size: standard size
Brand: HYFILTRATE
Material: fiberglass
Origin: China
The Replace Donaldson P-SRF V 05/25 Air filter element adopts an integrated stainless steel pleated structure, with extremely high sterilization and filtration efficiency, no fiber shedding phenomenon, and is suitable for repeated high-temperature steam sterilization conditions. Hydrophobic filter media has lower pressure drop, excellent circulation, sufficient dust holding capacity, gentle pressure difference increase, and a service life of up to 12 months under compressed air conditions. The overall chemical stability is strong, resistant to various disinfectant media erosion, and the installation matches the standard filter cartridge housing, making disassembly and maintenance convenient. It can stably ensure the sterility and cleanliness of process gases, avoid product contamination problems, reduce the frequency of system shutdown and maintenance, and long-term reduce the comprehensive cost of production line operation and maintenance.
Pharmaceutical industry: sterile fermentation air, ingredient storage tank respiration, pharmaceutical solution tank ventilation, freeze-drying machine protection filtration
Food and beverage: fermentation gas for alcoholic beverages, sterile intake for dairy products, protection for beverage filling, respiratory sterilization for food storage tanks
Biochemical and chemical engineering: purification of high-purity process nitrogen and carbon dioxide gases, ventilation and protection of fine chemical closed containers
General Industry: Compressed Air Sterilization in Cleanrooms, Exhaust Gas Filtration in Pure Water Systems, Laboratory Aseptic Air Source Treatment
P-SRF V 03/10、P-SRF V 04/10、P-SRF V 04/20、P-SRF V 05/20、P-SRF V 05/25
P-SRF V 07/25、P-SRF V 05/30、P-SRF V 07/30、P-SRF V 10/25、P-SRF V 10/30
P-SRF E 05/20、P-SRF E 07/25、P-SRF C 04/10、P-SRF C 06/20、P-GS VE 05/25

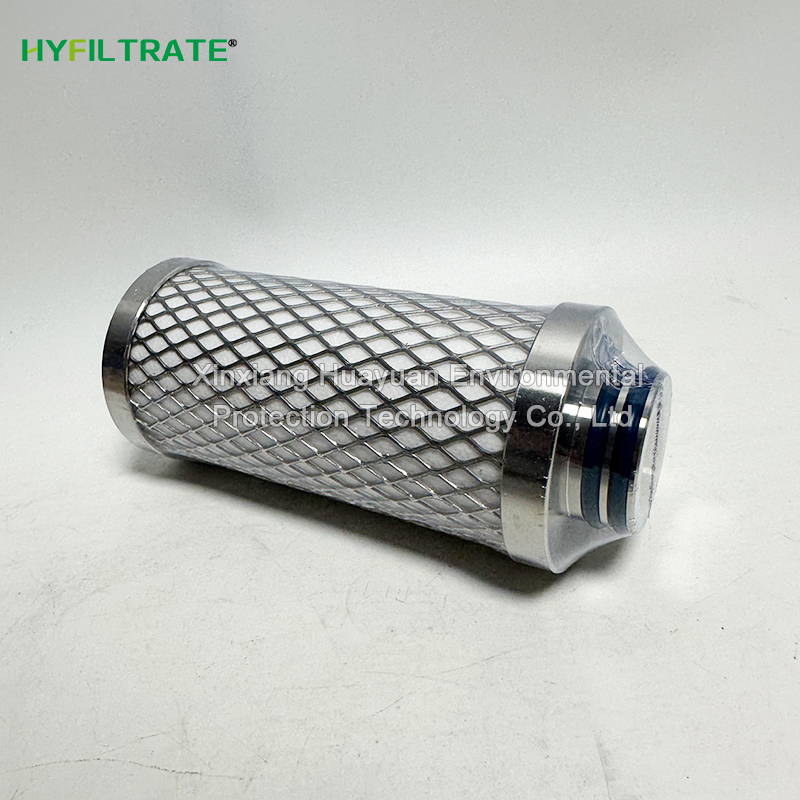

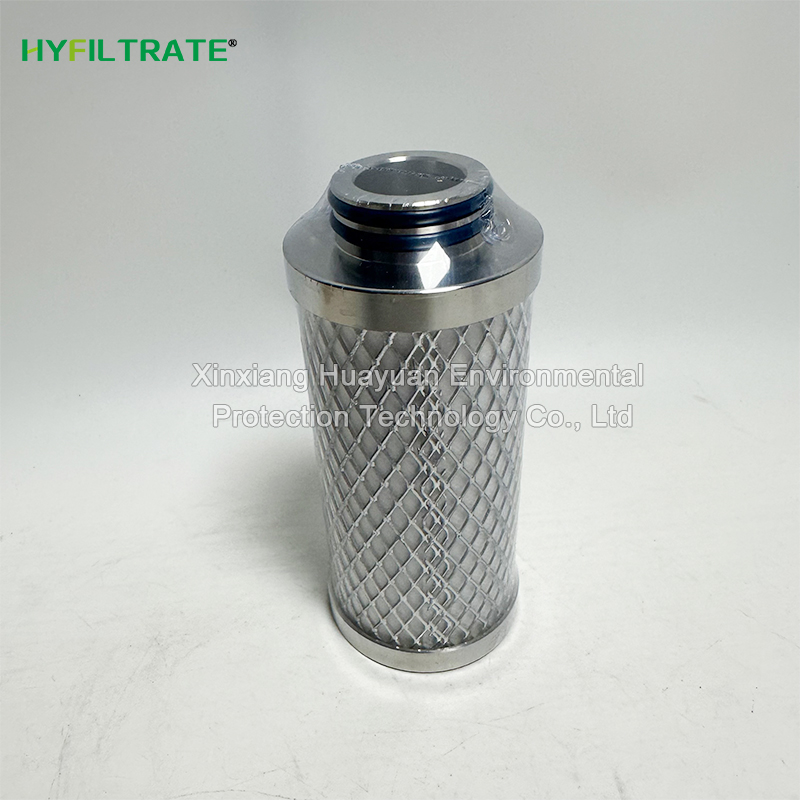

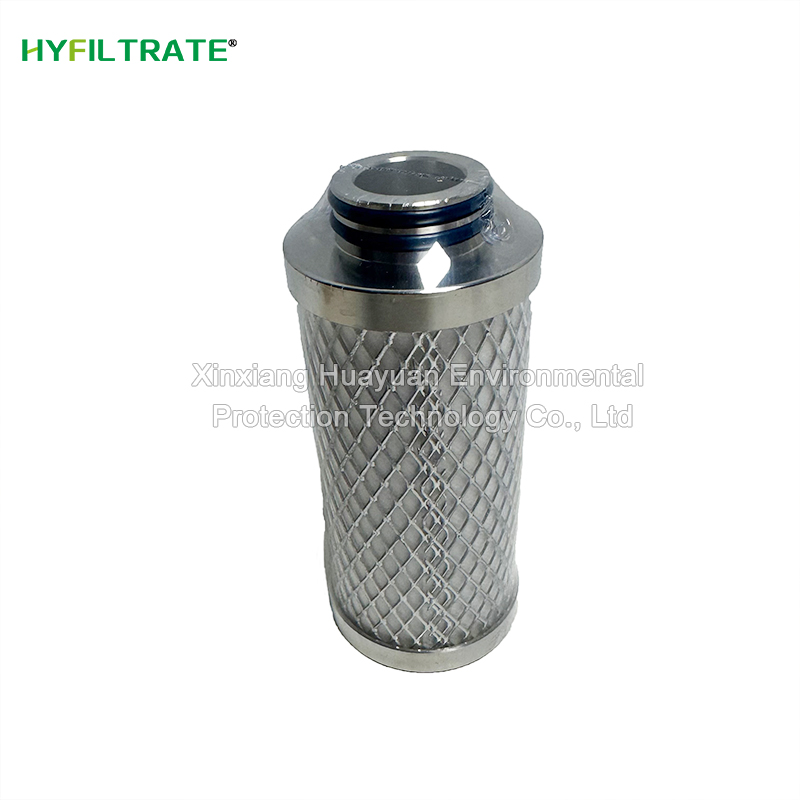

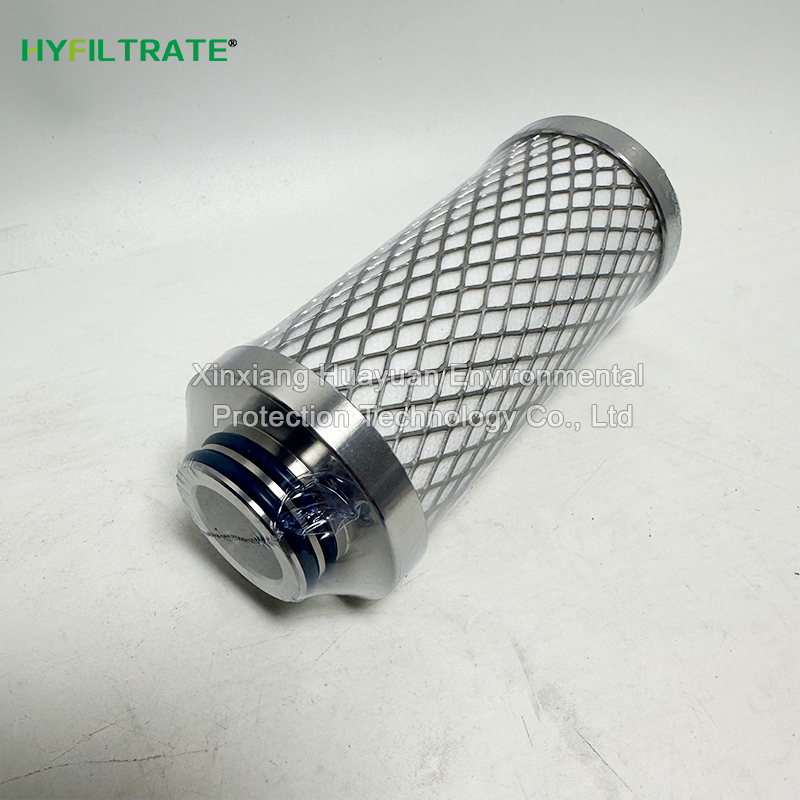

Replace Donaldson P-SRF V 05/25 air filter element
Core filter material: non binding borosilicate glass fiber+PTFE hydrophobic impregnation layer, three-dimensional deep filtration structure
Sterilization level: 0.2 μ m sterile level
Interception efficiency: LRV ≥ 9 for logarithmic reduction of 0.2 μ m and 0.02 μ m particles (interception efficiency ≥ 99.99%); For 0.003 μ m (3nm) particles with LRV ≥ 10 (interception efficiency ≥ 99.99%), it can efficiently intercept bacteria, viruses, aerosol oil mist, and ultrafine dust
Filter material characteristics: natural hydrophobic and liquid repellent, no fiber shedding, no binder precipitation, meeting the requirements of high-purity and clean working conditions
Ultimate tolerance pressure difference: 5 bar (consistent in forward/reverse direction)
Continuous operating temperature: -20 ℃~+200 ℃
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
