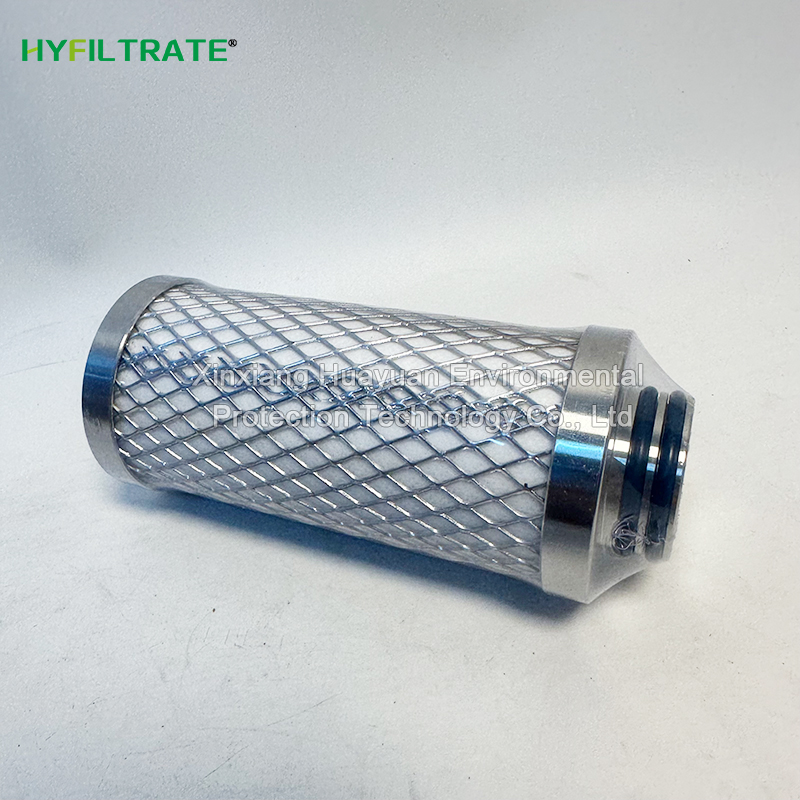

Replace Donaldson P-SRF II 05/25 air filter element with improved adhesive free
Model: P-SRF II 05/25
Size: standard size
Brand: HYFILTRATE
Material: fiberglass
Origin: China
Replace Donaldson P-SRF II 05/25 Air filter element with improved adhesive free borosilicate glass fiber filter material, which has excellent hydrophobicity, lower operating pressure difference, and stable and reliable sterilization and interception efficiency. The overall structure of stainless steel has high mechanical strength, can withstand multiple steam sterilization cycles, strong chemical resistance, and is suitable for various disinfection conditions. The filter layer has sufficient capacity for accommodating pollutants, with a gentle increase in pressure difference and a long-lasting service life. The standard interface is easy to disassemble and assemble. It can continuously ensure the sterility and cleanliness of process gases, eliminate material contamination on the production line, reduce unplanned downtime, and effectively reduce long-term production operation and maintenance costs as well as consumables replacement costs.
P-SRF V 03/10、P-SRF V 04/10、P-SRF V 04/20、P-SRF V 05/20、P-SRF V 05/25、
P-SRF V 07/25、P-SRF V 05/30、P-SRF V 07/30、P-SRF V 10/25、P-SRF V 10/30、
P-SRF E 05/20、P-SRF E 07/25、P-SRF C 04/10、P-SRF C 06/20、P-GS VE 05/25、

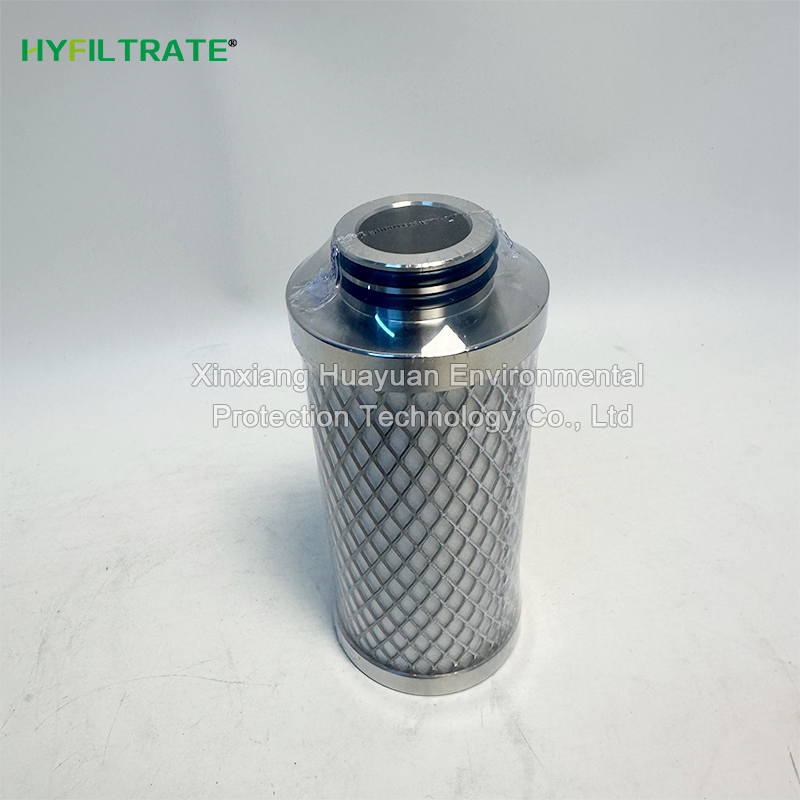

Replace Donaldson P-SRF II 05/25 air filter element
Core filter material: Three dimensional binder free borosilicate glass fiber with a porosity of 95%, naturally hydrophobic
Sterilization level: 0.2 μ m sterile level
Particle interception efficiency: For 0.01 μ m aerosol particles, the logarithmic reduction value LRV is ≥ 7 (interception efficiency ≥ 99.99%), which can effectively intercept bacteria, viruses, aerosol oil mist, and ultrafine dust
Microbial interception: achieving sterile interception effect on both defective short wave single cell bacteria and MS2 bacteriophages
Filter material characteristics: no fiber shedding, no adhesive precipitation, low risk of cleanliness
Ultimate tolerance pressure difference: 5 bar (consistent in forward/reverse direction)
Continuous operating temperature: -20 ℃~+150 ℃; Short term peak can withstand 200 ℃
Sterilization tolerance: 121 ℃ saturated steam sterilization ≥ 100 times
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
