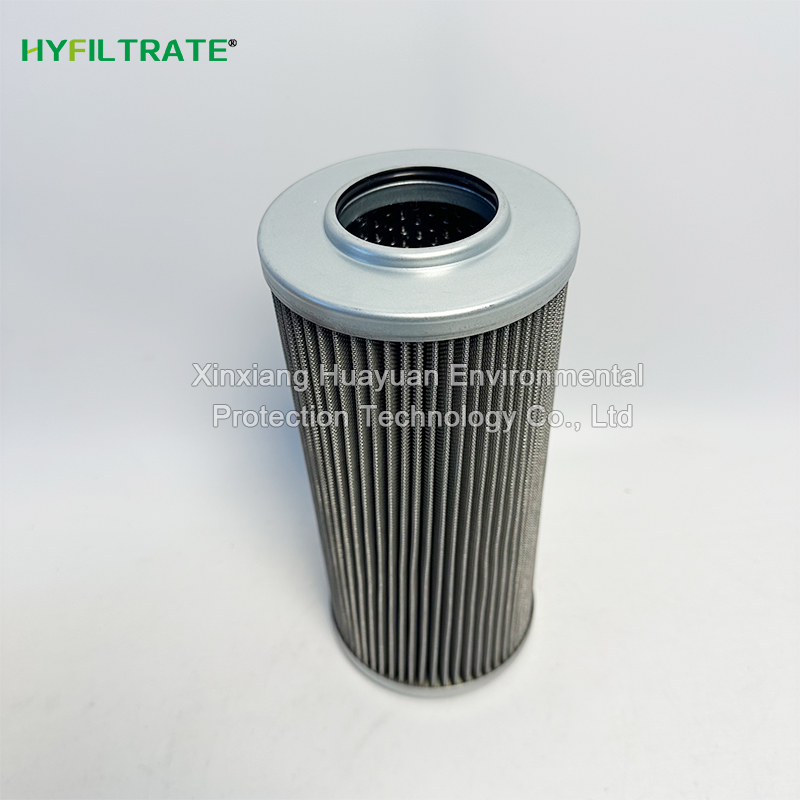

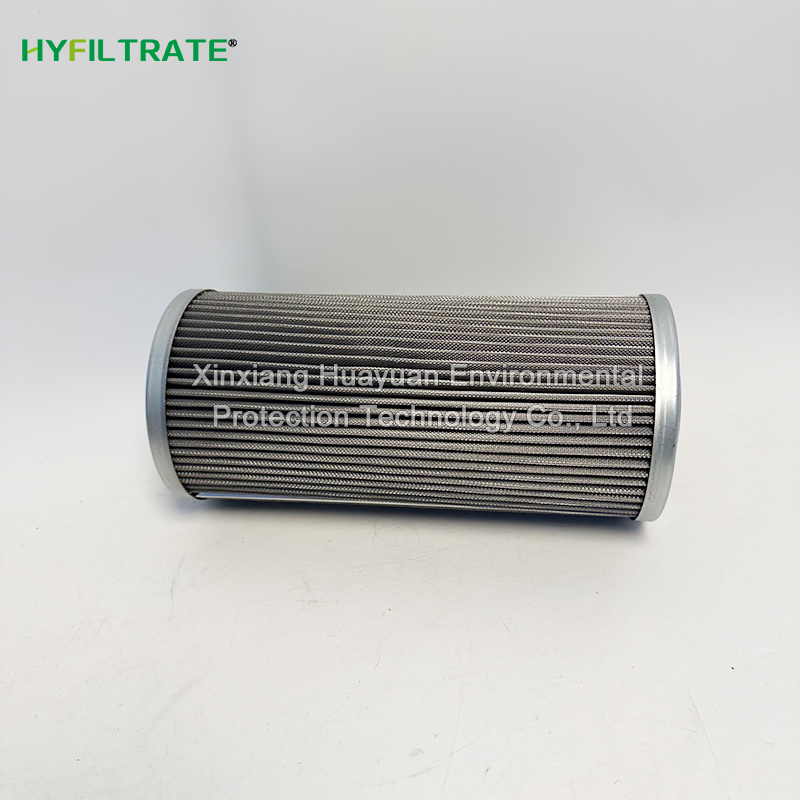

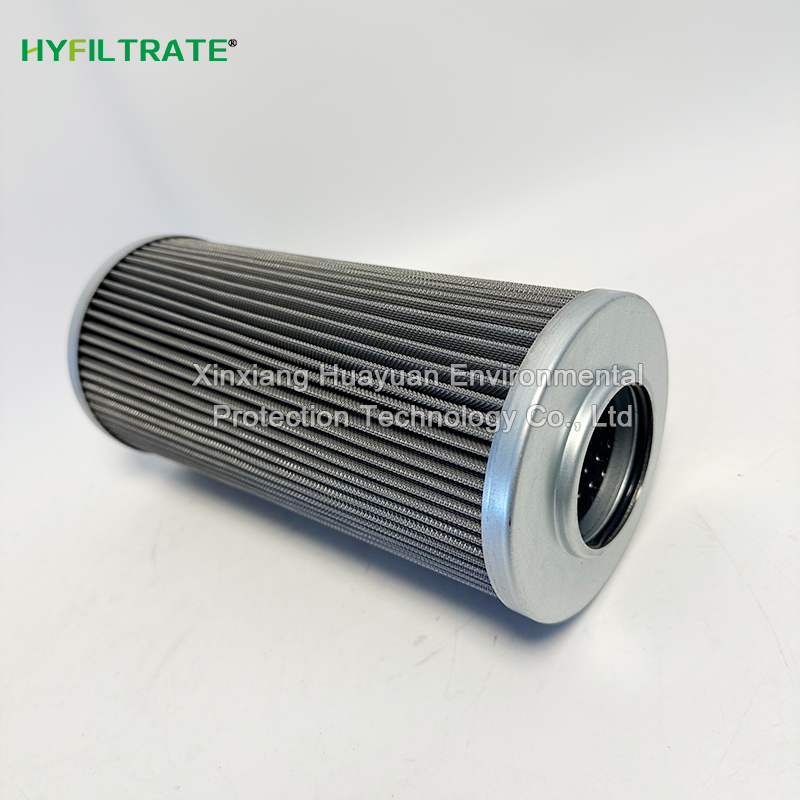

The Replace HIFI Filter SH670169 Hydraulic Oil Filter Cartridge is capable of ef
Model: SH670169
Filtration Accuracy: 10μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 70mm
High: 430mm
The Replace HIFI Filter SH670169 Hydraulic oil filter Cartridge is capable of efficiently capturing fine metal debris, rust particles, and colloidal contaminants within hydraulic oil, ensuring the cleanliness of the oil in precision hydraulic circuits and effectively protecting high-precision components such as servo valves and piston pumps. The steel support frame cushions frequent pressure fluctuations, making the filter layer less prone to deformation and collapse; the large-area pleated filter material has sufficient contaminant holding capacity, resulting in a gradual increase in pressure drop and effectively extending the maintenance cycle. The standard plug-in installation is convenient for assembly and disassembly, with a wide range of media compatibility, continuously reducing wear on hydraulic components, minimizing equipment downtime due to malfunctions, and controlling long-term hydraulic system operation and maintenance as well as consumable input.
Construction machinery: Main control hydraulic oil circuit for large excavators, shield machines, and mining equipment
Power industry: wind power hydraulic system, steam turbine lubrication station
Metallurgical industry: High-pressure hydraulic circulation system in rolling mills and continuous casting units
General industry: large hydraulic stations, die-casting equipment, complete production lines
Other scenarios: ship hydraulic system, high-pressure hydraulic test bench
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
SH670169, SH670118, SH670125, SH670160, SH67718
SH67716, SH67725, SH74448, SH66378, SH67891
SH50709, SH63028, SH63947, SH62021V, SH60729
Replace HIFI Filter SH670169 Hydraulic Oil Filter Cartridge
Filter material: multi-layer folded composite micro-glass fiber; flow direction: from outside to inside
Filtration accuracy: 6μm absolute accuracy
Collapse resistance pressure difference: 21 bar
Seal: NBR (Nitrile Butadiene Rubber), with FPM (Fluororubber) as an option
Operating temperature: -25℃～+110℃
Support structure: Anti-corrosion steel internal and external punching support framework, capable of withstanding continuous pressure fluctuations
Compatible medium: mineral hydraulic oil, anti-wear hydraulic oil, water-glycol medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
