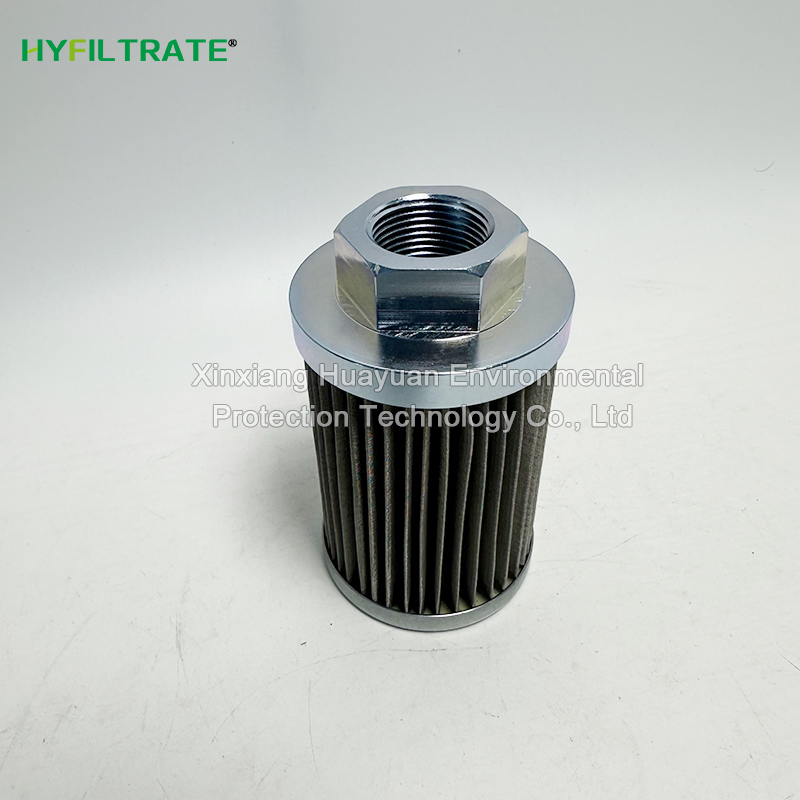

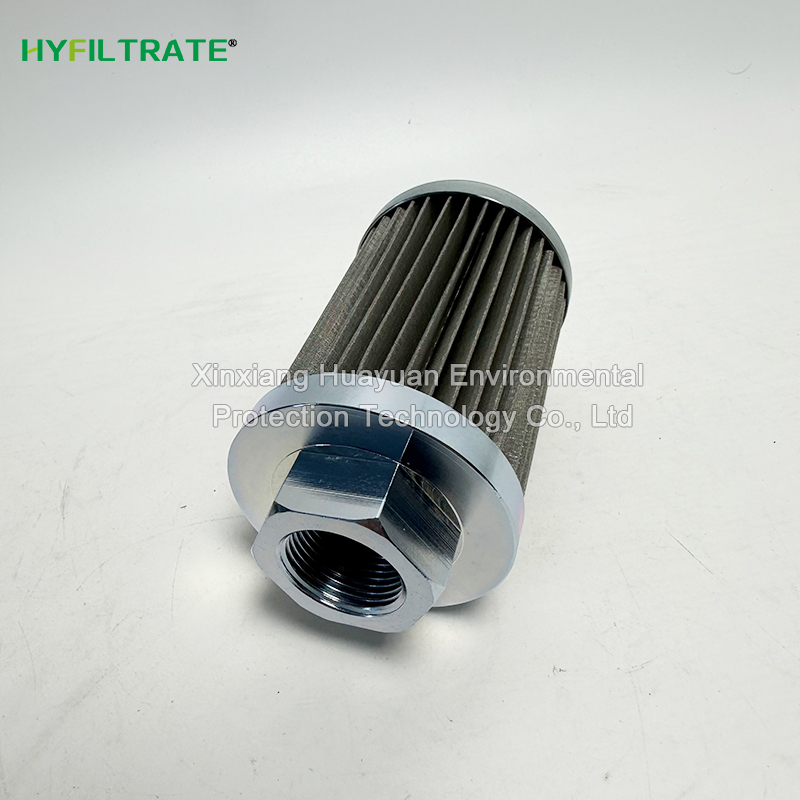

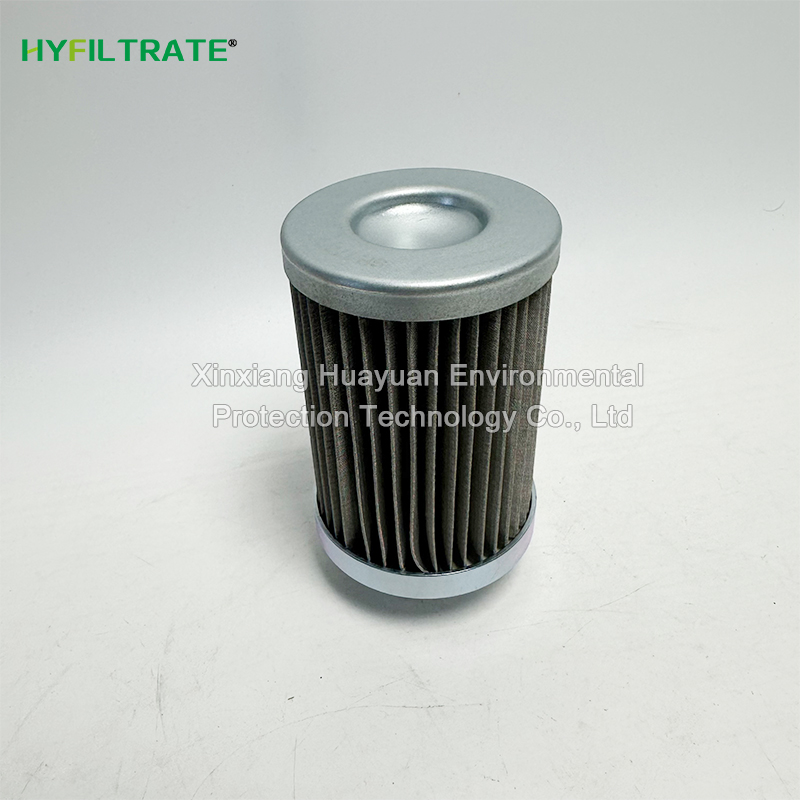

Replace HIFI Filter SH 77007 Hydraulic Oil Filter Cartridge-Huayuan Environmental Protection Technology Co., Ltd.

Replacing the HIFI Filter SH 77007 Hydraulic oil filter element, it has stable dirt holding capacity, continuously intercepting fine pollutants inside the system, protecting small hydraulic pumps and multi way valve components, and reducing the probability of internal wear and failure. The compact cylinder structure saves installation space inside the fuel tank, and the folded layout ensures effective flow area, resulting in stable pressure loss during normal operation. Built in metal support cylinder to resist liquid flow impact and prevent filter material deformation and blockage. The end face seal fits tightly, reducing medium bypass and suitable for long-term intermittent operation of small construction machinery.

Applicable locations:

Small construction machinery: hydraulic return oil purification unit for mini excavators and mini loaders

Agricultural equipment: hydraulic oil filtration device for rice transplanters and small harvesters

Landscape machinery: large lawn mowing equipment, mobile maintenance machinery hydraulic system

Port auxiliary equipment: small pallet trucks, light forklifts, oil circuit protection

Small hydraulic power units and injection molding auxiliary machines with built-in filtering circuits in other scenarios

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): SH77005, SH77008

Tip: There are differences in filtering accuracy and cannot be interchanged arbitrarily.

2) Alternative model: HFSH77007, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and thread interface specifications must match; Fiberglass filter material cannot be washed and regenerated; Regularly inspect the thread seal for any leakage.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

SH77007、SH77005、SH77006、SH77008、SH77009

SH77010、SH77011、SH77012、SH77013、SH77014

SH76007、SH78007、SH77007A、SH77007B、SH77007C

Technical data

Replace HIFI Filter SH 77007 Hydraulic Oil Filter Cartridge

Product type: Small equipment hydraulic return oil fiberglass precision filter cartridge

Filter material configuration: multi-layer gradient glass fiber deep filtration medium, fluid flow direction from outside to inside

Filtering accuracy: 10 μ m, capturing component wear particles, oil sludge gum, and fine hard impurities

Allowable maximum pressure difference: 12 bar, suitable for pressure fluctuation conditions in small and medium-sized equipment circuits

Sealing material: NBR nitrile rubber sealing ring, compatible with various hydraulic transmission media

Working temperature range: -25 ℃ to+105 ℃

Supporting structure: Galvanized steel punched inner support cylinder, stable pleated filter layer shape

Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
