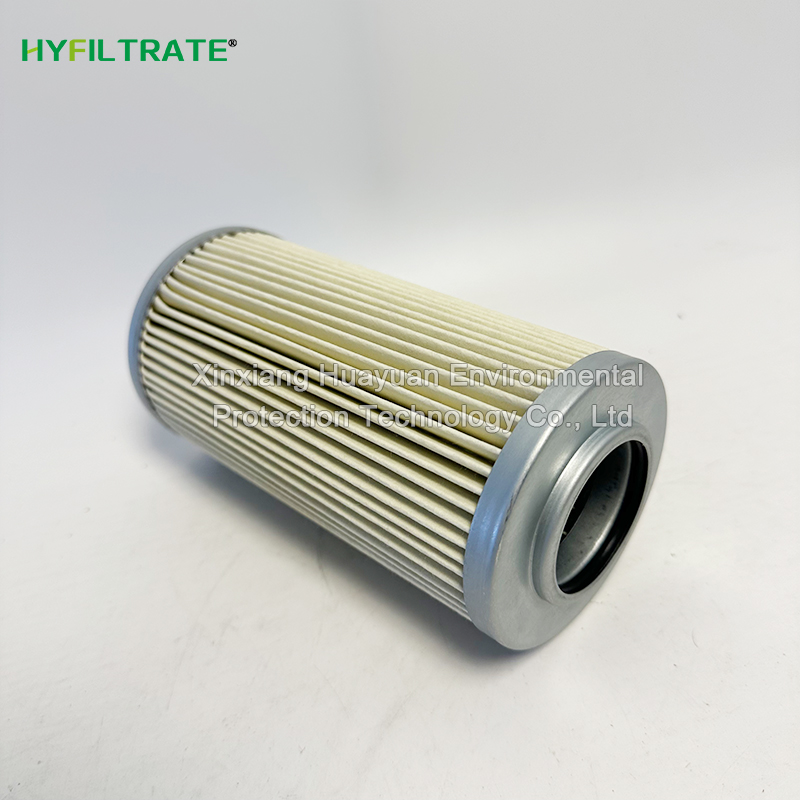

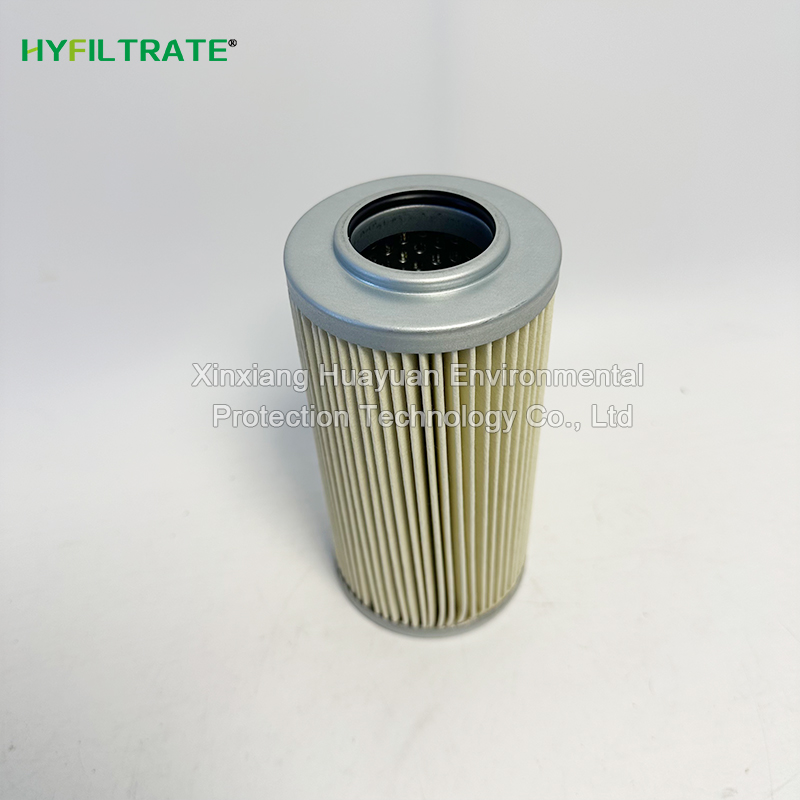

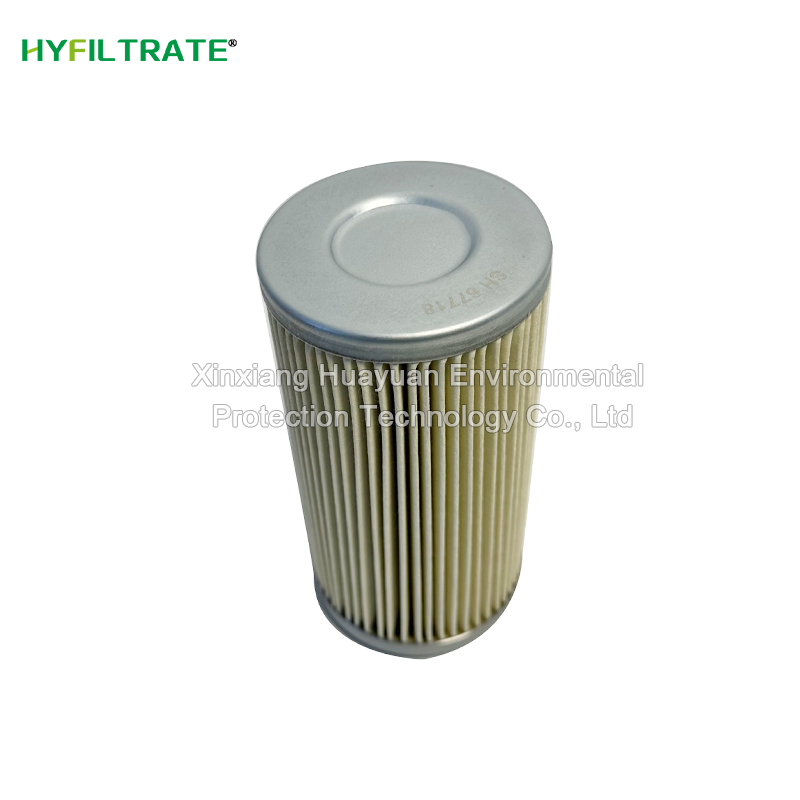

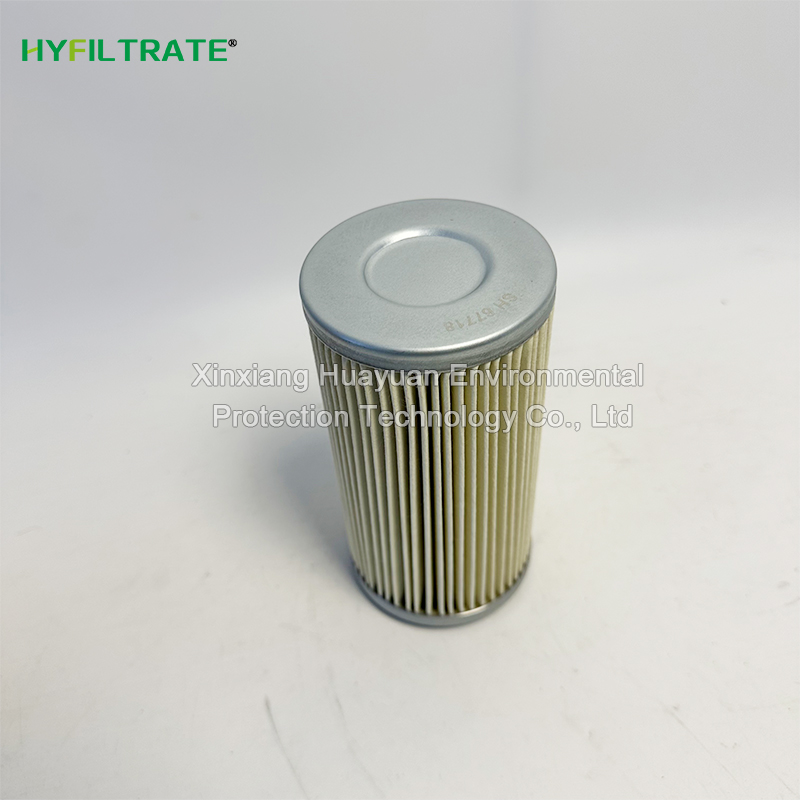

Replace HIFI Filter SH67718 hydraulic oil filter element

Description:: Replace HIFI Filter SH67718 hydraulic oil filter element can efficiently capture

Share With:

Replace HIFI Filter SH67718 Hydraulic oil filter element can efficiently capture fine metal debris, rust particles, and colloidal contaminants in hydraulic oil, stably ensuring the cleanliness of high-pressure oil circuits and protecting precision components such as piston pumps and servo valves. The steel support frame buffers pressure fluctuations, making the filter layer less prone to deformation and collapse; the large-area pleated filter material has sufficient dirt holding capacity, resulting in a gradual increase in pressure drop and effectively extending the maintenance cycle. The standard plug-in structure allows for convenient disassembly and assembly, has a wide range of media compatibility, continuously reduces wear on hydraulic components, reduces unexpected equipment downtime, and controls long-term hydraulic system operation and maintenance as well as consumable input.

Applicable places:

Construction machinery: excavators, shield machines, hydraulic main control oil circuits of large mining machines

Power industry: wind power hydraulic system, steam turbine thin oil lubrication station

Metallurgical industry: high-pressure hydraulic circulation system in rolling mills and continuous casting equipment

General industry: large hydraulic stations, die-casting equipment, CNC machine tools

Other scenarios: ship hydraulic system, high-pressure hydraulic test bench

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

SH67718, SH67716, SH67725, SH67760, SH74448

SH66378, SH67891, SH50709, SH50715, SH63028

SH63947, SH62021V, SH60729, SH64038, SH72012

Technical data

Replace HIFI Filter SH67718 hydraulic oil filter element

Filter material: multi-layer folded micro-glass fiber; flow direction: from outside to inside

Filtration accuracy: 10μm absolute accuracy

Collapse resistance pressure difference: 21 bar

Seal: NBR (Nitrile Butadiene Rubber), with FPM (Fluororubber) as an option

Operating temperature: -25℃~+110℃

Support structure: anti-corrosion steel internal and external punching support framework, capable of withstanding frequent pressure pulsations

Compatible medium: mineral hydraulic oil, anti-wear hydraulic oil, water-glycol medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
