The LCX330FD1 hydraulic oil filter element can filter submicron sized grinding d
Model: LCX330FD1
Filtration Accuracy: 10μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 72 mm
High: 335 mm
The LCX330FD1 Hydraulic oil filter element can filter submicron sized grinding debris in the oil, maintain ultra-high cleanliness of the oil for a long time, and significantly reduce the failure rate of proportional valves, servo valves, jamming, drift, and oil pump strains. It is the first choice for precision machine tools. Adopting an encrypted star shaped folding structure, the filtering area is sufficient, and the replacement cycle of impurities in steel rolling and die-casting workshops is 45% longer than that of ordinary short filter elements, saving downtime labor and consumables costs.

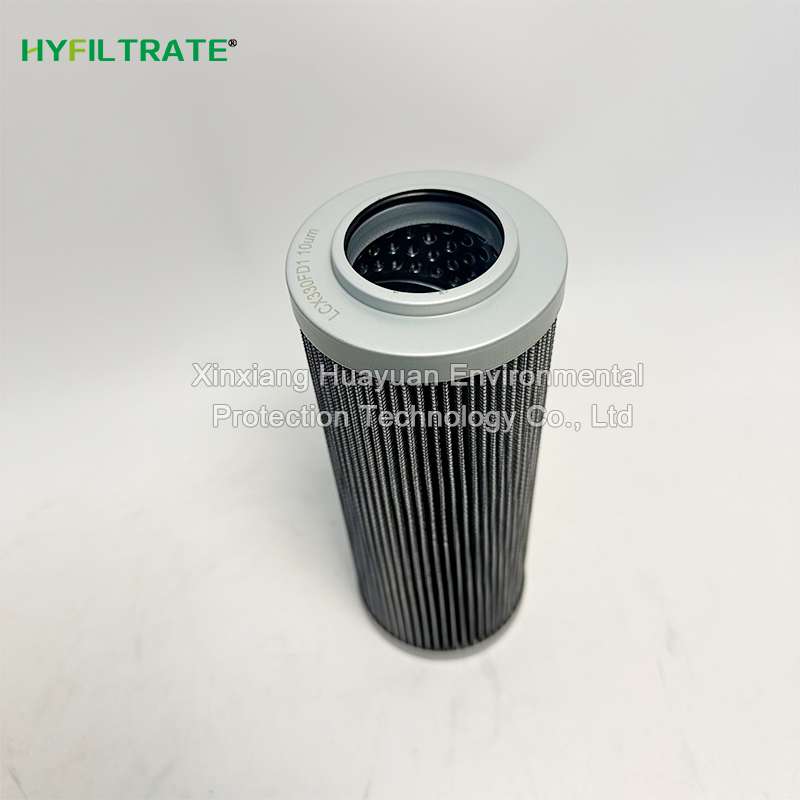

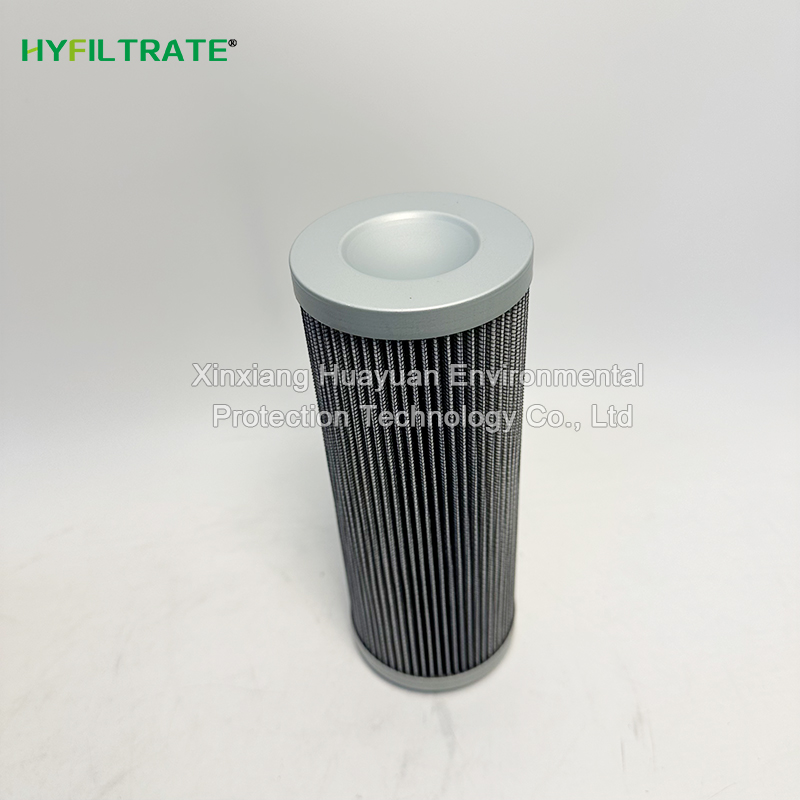

LCX330FD1 hydraulic oil filter element
Filter material: Five layer gradient borosilicate ultrafine glass fiber
Accuracy: 10 μ m, β ₁ ≥ 200, interception efficiency 99.5%
Stable oil cleanliness: compatible with closed-loop servo control system
Comes with anti-static fiber layer to eliminate oil static adsorption and blockage
Working temperature: -25 ℃~+110 ℃
Standard sealing: NBR nitrile rubber
Suitable media: mineral hydraulic oil, gear lubricating oil, water ethylene glycol refractory fuel
