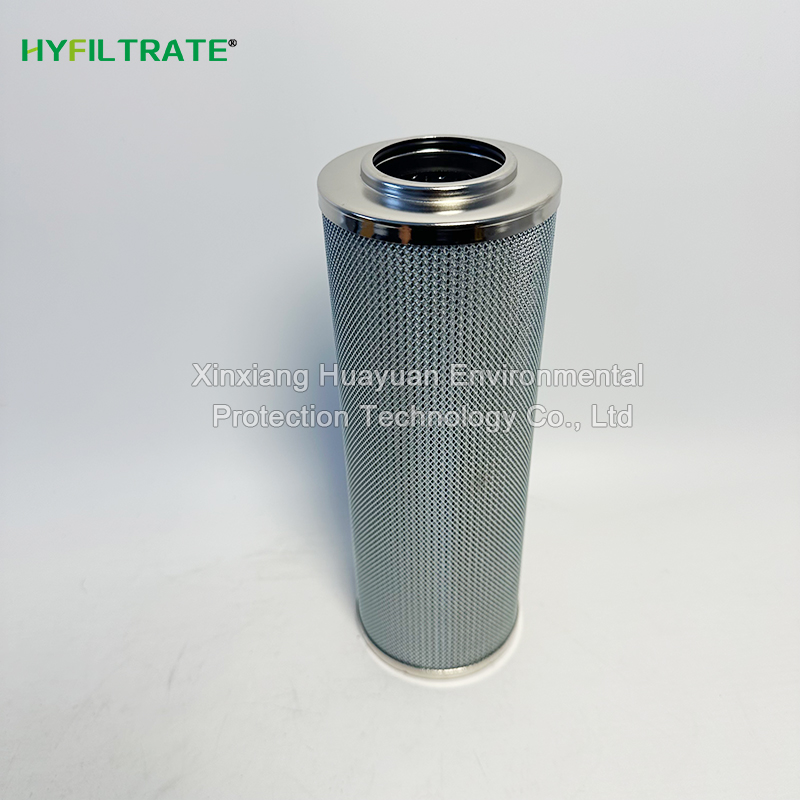

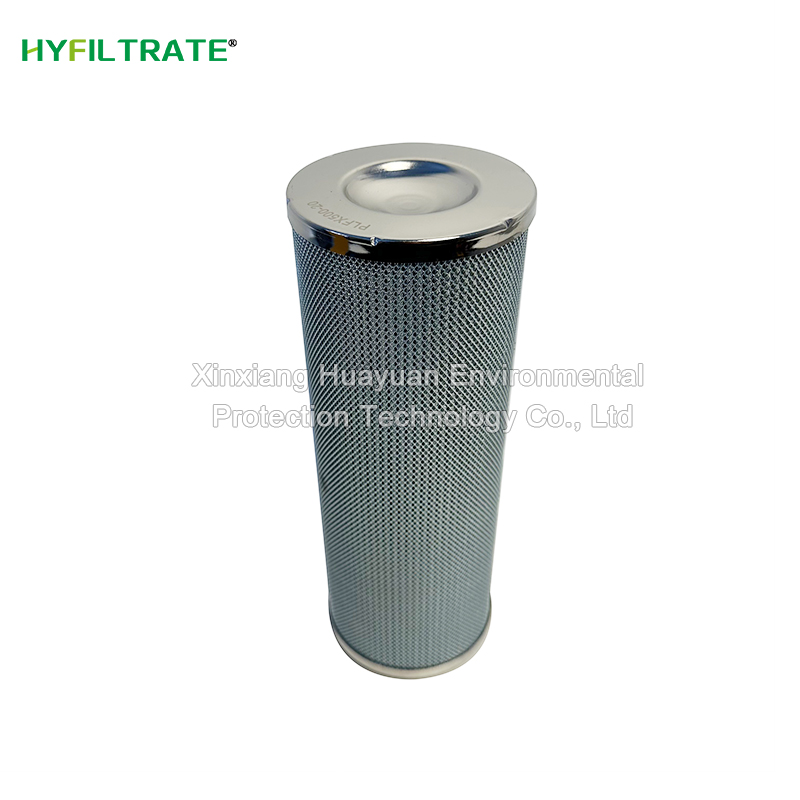

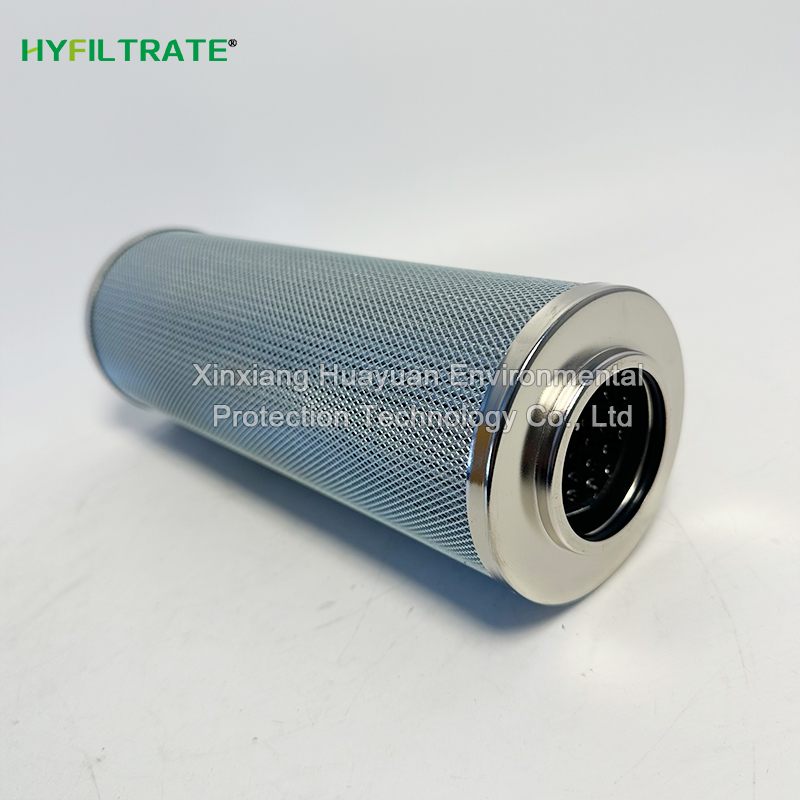

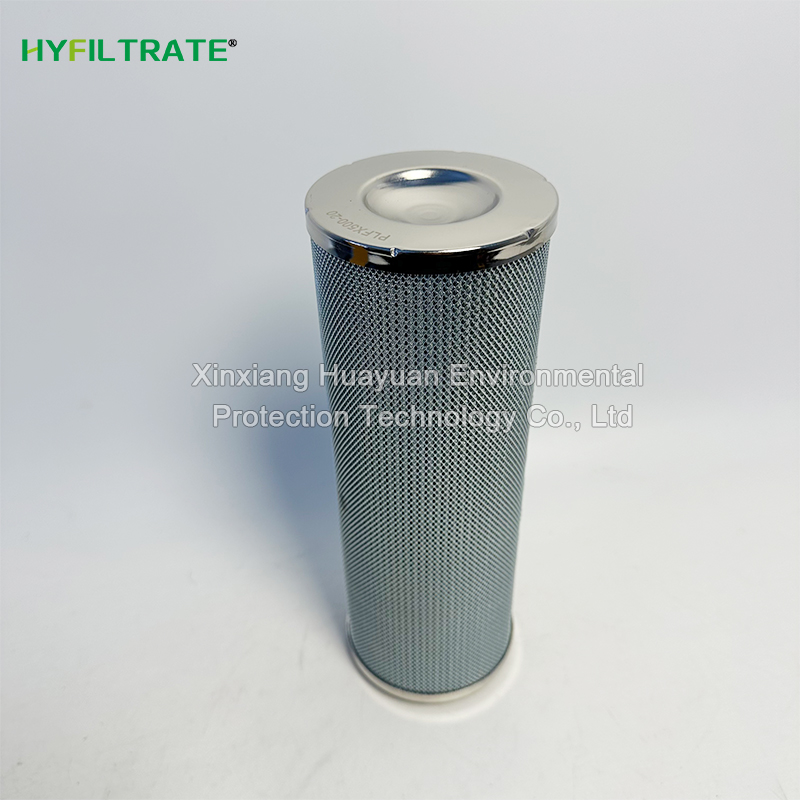

Replacing the LEEMIN PLFX500-20 hydraulic oil filter element, it has strong stab
Model: PLFX500-20
Filtration Accuracy: 20um
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: PLFX500
High: PLFX500
Replacing the LEEMIN PLFX500-20 Hydraulic oil filter element, it has strong stability under high-pressure conditions and is compatible with the high-pressure main pipe and servo control system of hydraulic pump stations. It blocks system wear particles, prevents servo valve core jamming and motion drift, and ensures equipment processing/operation accuracy. And the glass fiber folding structure has a large dirt holding capacity, a smooth increase in pressure difference, a long service life, and reduces frequent shutdown and replacement of high-pressure pipelines.
HX-630X20、HX-630X10Q、HX-800X20、HX-800X10Q
HBX-10X20、HBX-10X10Q、HBX-25X20、HBX-25X10Q、
HBX-40X20、HBX-40X10Q、HBX-63X20、HBX-63X10Q、HBX-100X20、HBX-100X10Q、HBX-160X20、HBX-160X10Q、HBX-250X20、HBX-250X10Q、HBX-400X20、HBX-400X10Q、HBX-630X20、HBX-630X10Q、HBX-800X20、 HBX-800X10Q、HX.BH-400X20、HX.BH-400X10Q、 HX.BH-630X20、
HX.BH-630X10Q、 HX.BH-800X20、HX.BH-800X10Q、
HBX.BH-400X20、 HBX.BH-400X10Q、 HBX.BH-630X20、
Replace LEEMIN PLFX500-20 hydraulic oil filter element
Filtering accuracy: 20 μ m, β ₂₀ ≥ 200, interception efficiency ≥ 99.5%
Filter material: HV fiberglass material, disposable and non washable
Working temperature: -20 ℃ to+110 ℃
Suitable media: mineral hydraulic oil, lubricating oil, water ethylene glycol flame retardant fluid
1. High quality filter materials: We strictly select high-quality glass fiber, stainless steel mesh and other materials to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user quality requirements and is compatible with most hydraulic systems.
3. Customizable: We provide customized solutions based on your model, working conditions, and brand replacement requirements.
4. Cost effectiveness: The factory's direct supply eliminates intermediaries, reducing procurement costs while maintaining excellent quality.
