Replacing ARGO HYTOS V2.1234-26 precision filter element, multi-layer gradient g
Model: V2.1234-26
Brand: HYFILTRATE
Filtration accuracy: 10μm
Size: standard size

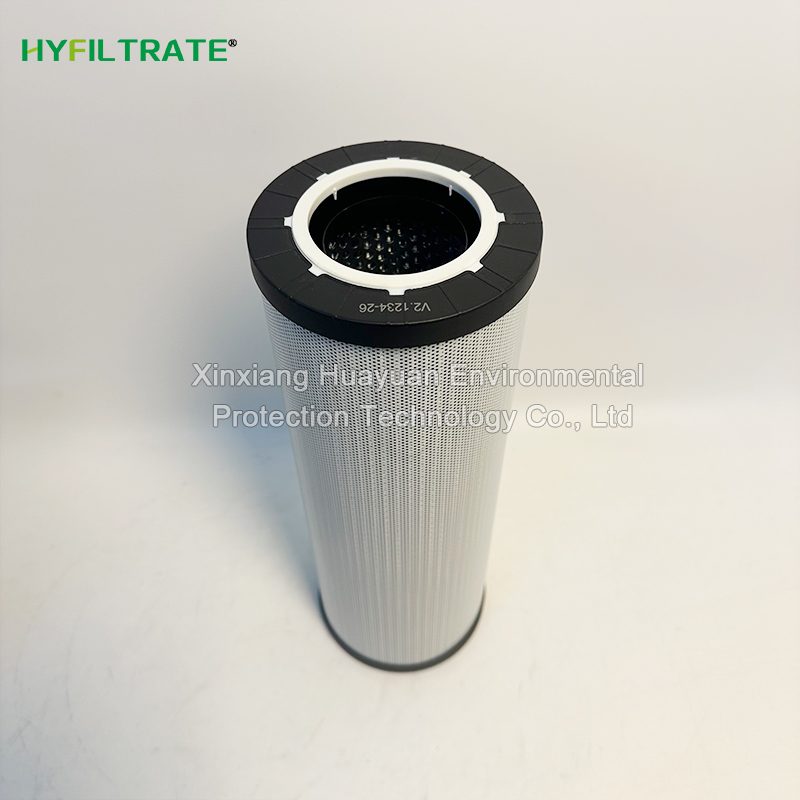

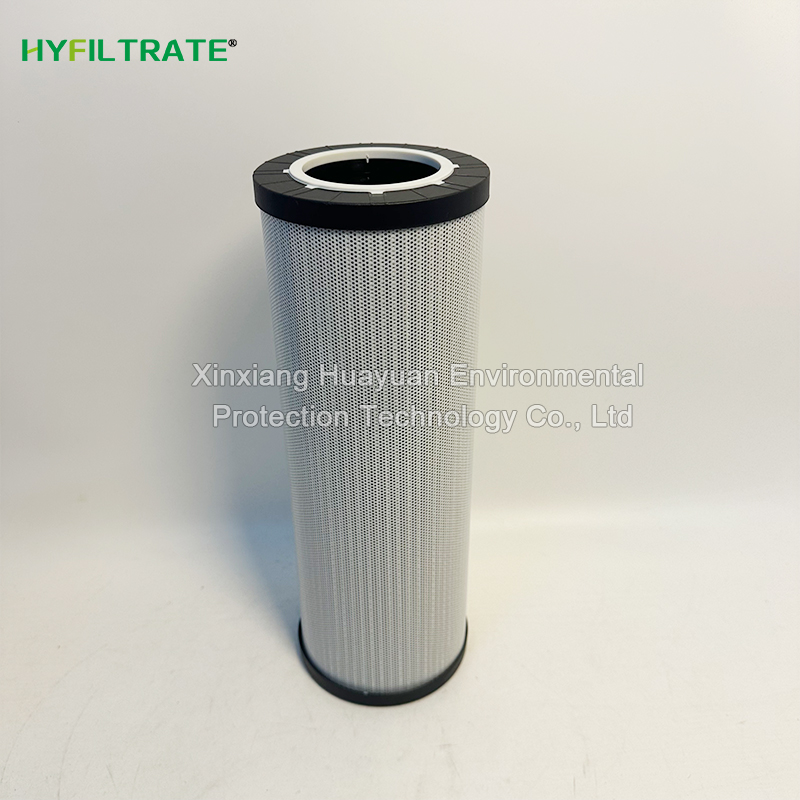

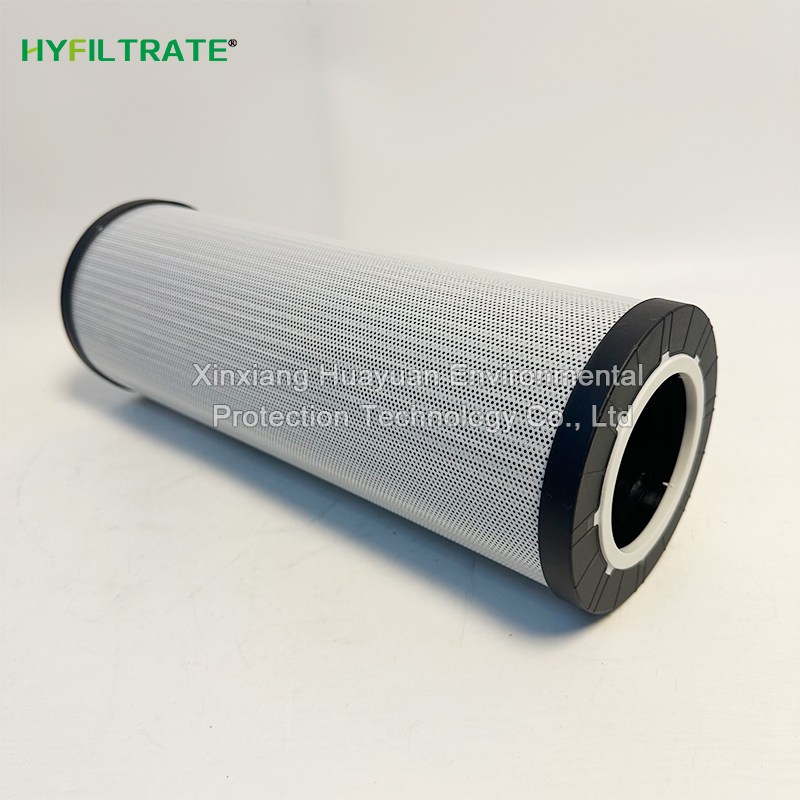

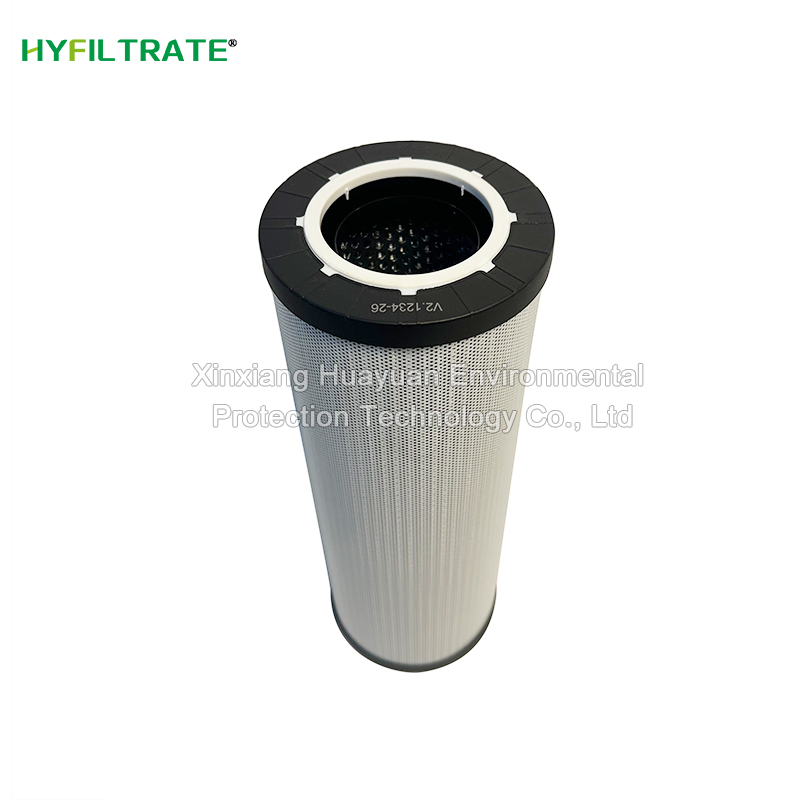

Replacing ARGO HYTOS V2.1234-26 Precision filter element, multi-layer gradient glass fiber is used to intercept impurities layer by layer, with a β value of 1000, far exceeding the conventional β 200 filter element. It can efficiently protect servo valves, electro-hydraulic converters, and precision plunger pumps, greatly reducing valve jamming, internal leakage, and wear faults. The filter material comes with anti-static treatment, which weakens the static adsorption and accumulation of oil sludge and colloids, significantly extending its service life. And the size of the cylinder is matched with a dense star shaped pleated design, with an effective filtration area of 8685cm ² and excellent sewage storage capacity. Under 24-hour continuous operation of the power plant oil station and steel rolling system, the pressure difference rises steadily, and the frequency of maintenance and replacement is lower, reducing production losses caused by shutdown and maintenance.
V2.1234-26、V2.1234-28、V2.1217-36、V2.1217-56、V2.1250-06
V2.1250-08、V2.1260-03、V2.1260-06、V2.1260-26、V2.1460-23
P2.1217-51、P2.1234-41、V3.0833-06、V3.0833-10、V3.0833-25
Replace ARGO HYTOS V2.1234-26 precision filter element
Filtering index: 10 μ m, β ₁₀ ≥ 1000, interception efficiency 99.9%
Differential pressure data: It is recommended to replace the differential pressure with 3.05 bar; The maximum pressure of the adaptive system is 110 bar
Temperature&Sealing: -20 ℃~+110 ℃
Flow direction: oil enters from outside and exits from inside; Filter area up to 8685cm ²
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
