Replacement for Parke 933136Q oil filter is mainly used to filter the oil in the
Model: 933136Q
Filtration Accuracy: 1-100um
Brand: HYFILTRATE
Material: Glass fibre
Outer diameter: Standard size
High: Standard size
Replacement for Parke 933136Q oil filter is mainly used to filter the oil in the hydraulic system, remove pollutants such as metal powder and impurities, ensure the system is clean and extend the service life. According to the different installation positions, it is divided into three categories: oil suction line, pressure line and oil return line, and the filtering accuracy and pressure bearing capacity are different.
Replacement for Parke 933136Q oil filter uses stainless steel woven mesh, sintered mesh and other materials, and the filter materials include glass fiber filter paper, chemical fiber filter paper, etc. The multi-layer structure ensures filtering efficiency and durability.

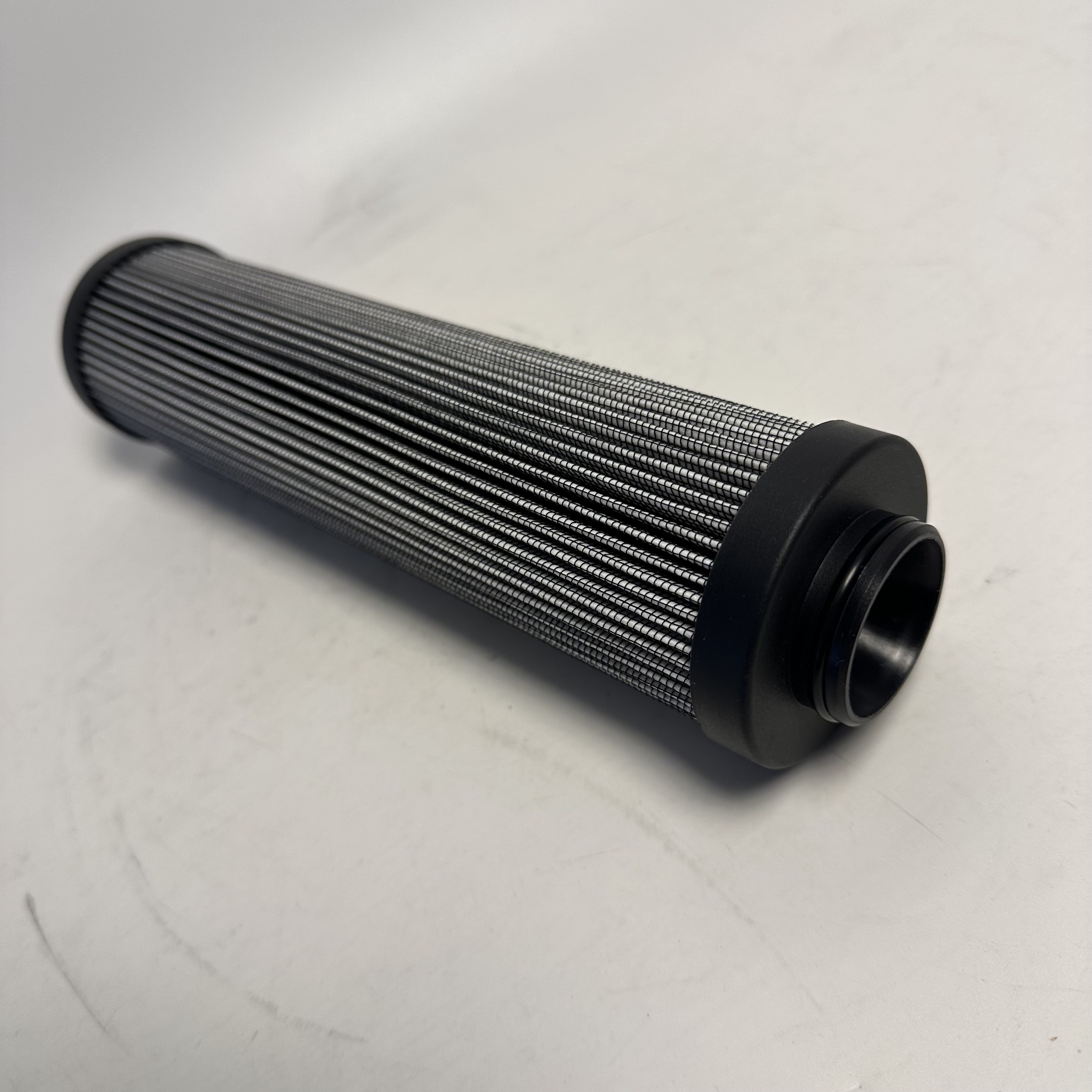

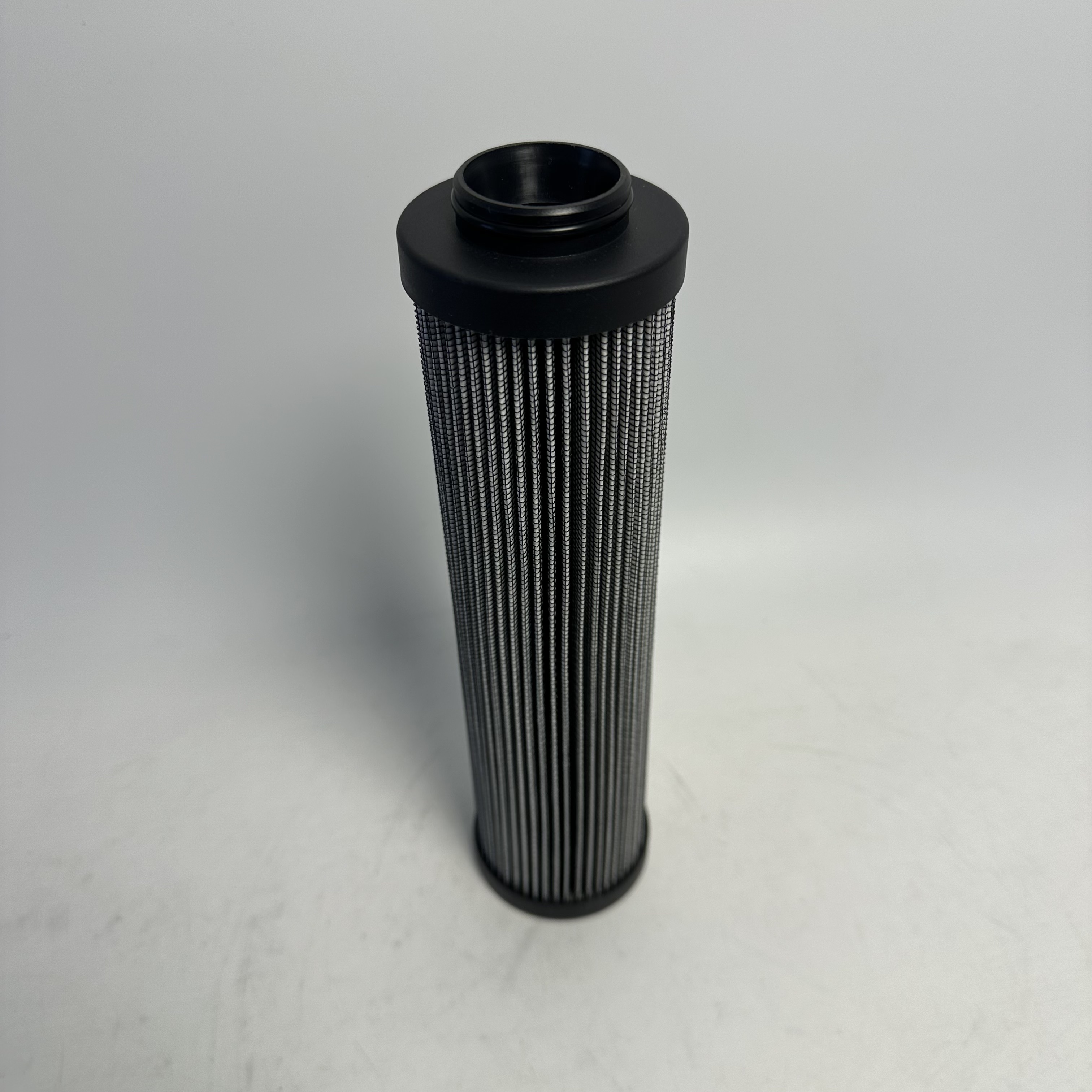

933136Q oil filter
1. Filtration accuracy: 1-100um Filtration ratio: X ≥ 100
2. Work pressure: (MAX) 21Mpa
3. Working medium: general hydraulic oil, phosphate ester hydraulic oil, emulsion, water ethylene glycol, etc
4. Working temperature: -30 ℃~110 ℃
5. Filter material: High quality glass fiber filter material is used
6. Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
7. Scope of use: Used for oil pressure filtration in hydraulic and lubrication systems, to filter out pollutants in the system.
