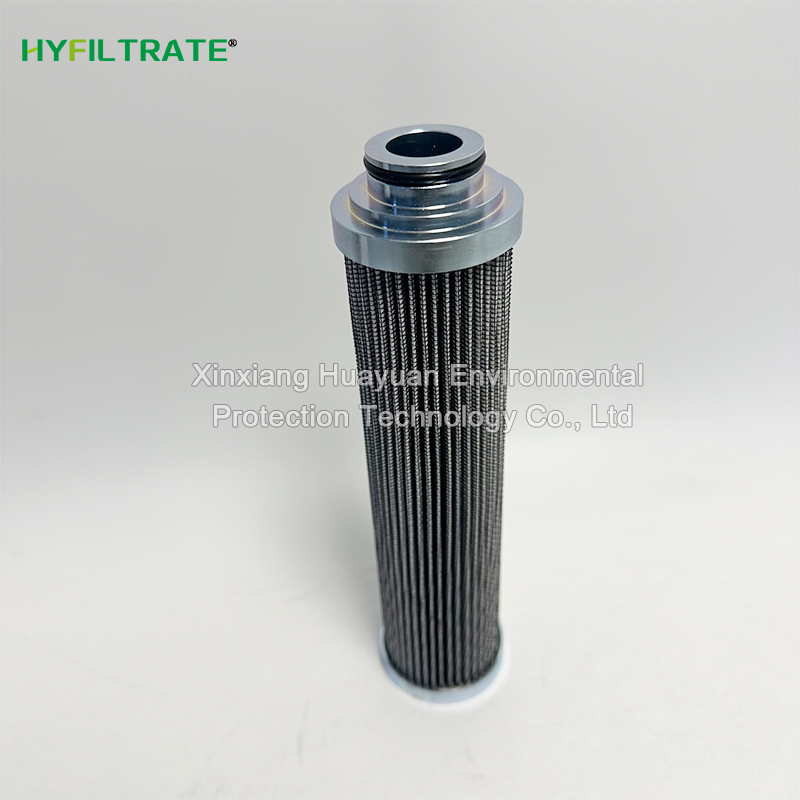

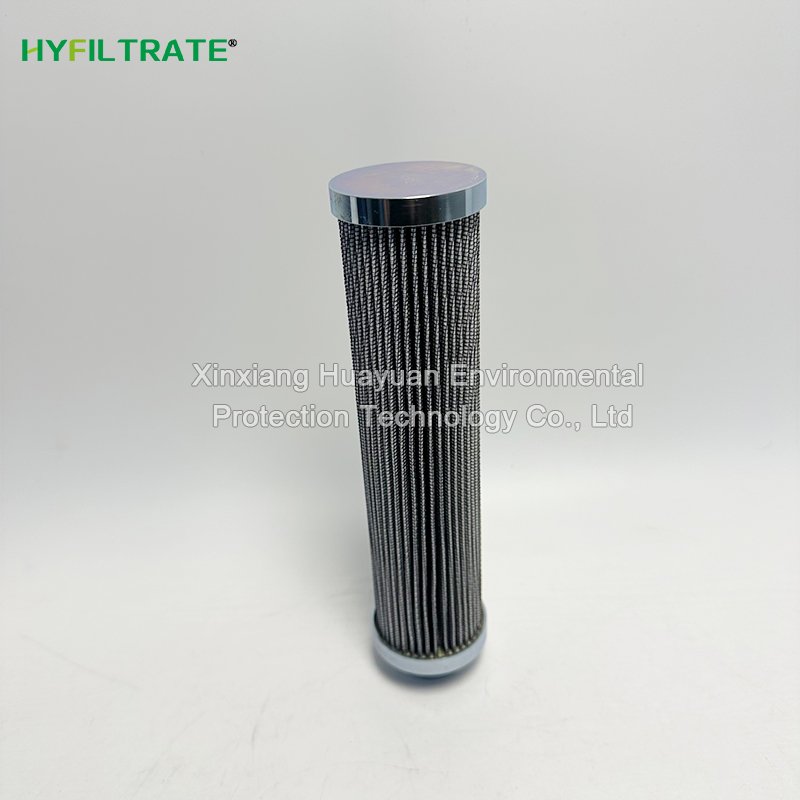

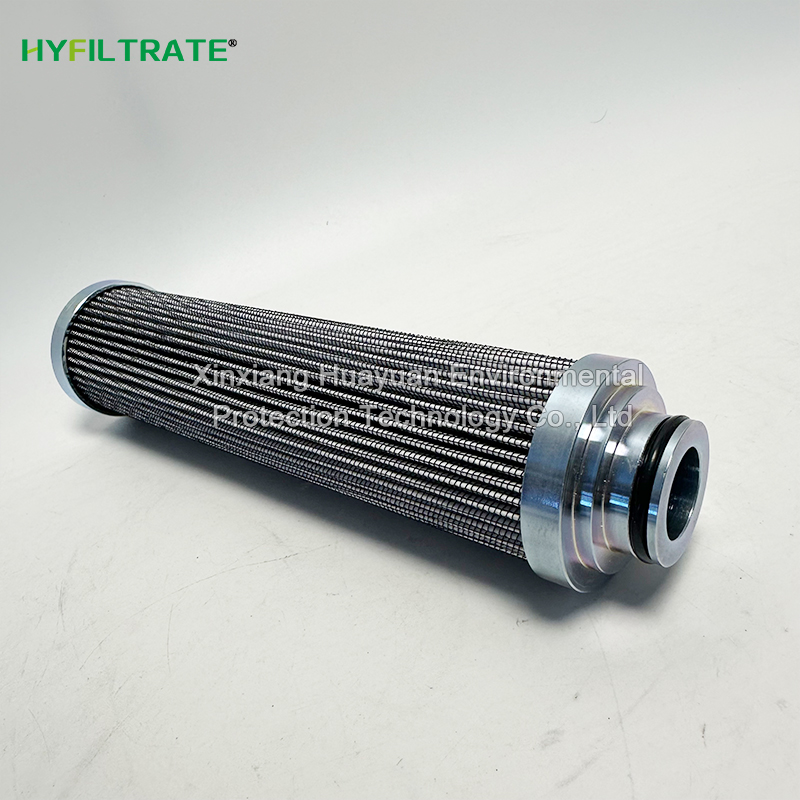

Replace Parker G04300 hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

The replacement Parker G04300 Hydraulic oil filter element has sufficient dirt holding capacity, continuously and stably intercepting fine solid pollutants, reducing internal wear of servo components and plunger pumps. The dense folded layout expands the effective filtering area, resulting in low pressure loss during normal operation. Double layered metal sleeves reinforce the filter layer, improving its compressive performance and reducing the risk of damage under high-pressure conditions. The sealing end face fits tightly, reducing the phenomenon of medium bypass, ensuring the cleanliness level of the oil circuit, and extending the stable operation cycle of the entire hydraulic device.

Applicable locations:

Hydraulic equipment manufacturing: High pressure hydraulic station, servo control system precision filtration unit

Metallurgical rolling industry: plate extrusion, continuous casting and rolling high-pressure oil purification device

Construction machinery: excavation machinery, main control pressure pipeline protection for heavy-duty vehicles

New energy field: Precision filtration of hydraulic transmission circuit for wind turbines

Other scenarios include automated production lines, injection molding equipment, oil circuit protection and filtration

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): G04299, G04301

Tip: There is a difference between filtration accuracy and pollutant holding capacity, and they cannot be interchanged at will.

2) Alternative model: PKG04300, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter material cannot be washed and regenerated; Promptly investigate external sources of pollution when there is an abnormal increase in pressure difference.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

G04300、G04298、G04299、G04301、G04302

G04294、G04295、G04296、G04297、G04303

G04304、G04305、G04290、G04291、G04292

Technical data

Replace Parker G04300 hydraulic oil filter element

Product Type: Hydraulic System High Pressure Pipeline Fiberglass Precision Filter Cartridge

Filter material configuration: multi-layer gradient glass fiber deep filtration medium, fluid flow direction from outside to inside

Filtering accuracy: 10 μ m, capturing component wear particles, oxidized sludge, and small hard impurities

Allowable maximum pressure difference: 21 bar, resistant to continuous pressure alternating impact of high-pressure pipelines

Sealing material: NBR nitrile rubber sealing ring, compatible with various hydraulic transmission media

Working temperature range: -30 ℃ to+110 ℃

Supporting structure: Galvanized steel punched inner and outer sleeves, buffering high-speed liquid flow erosion

Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
