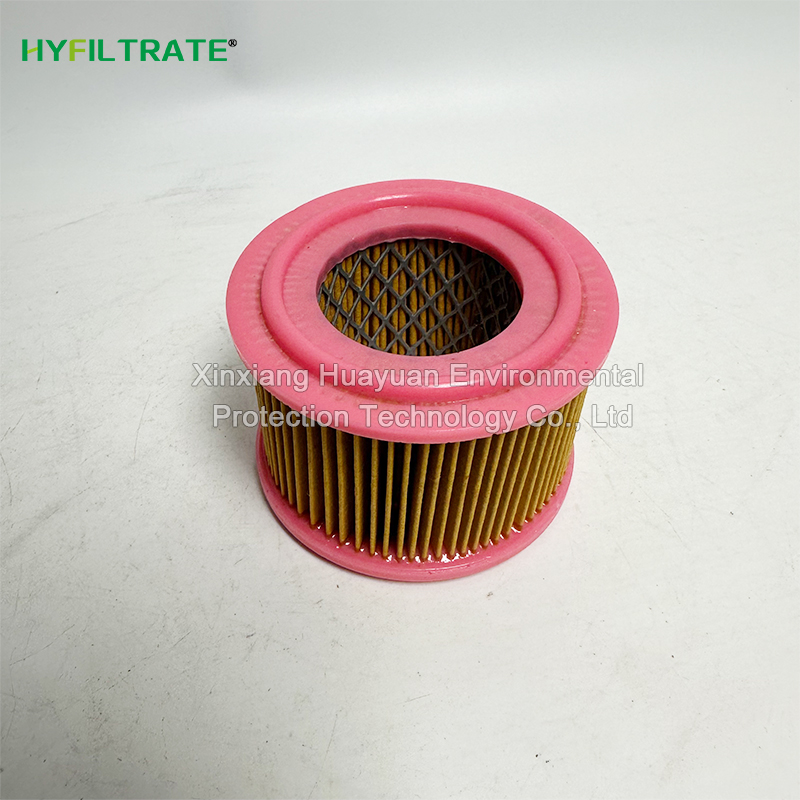

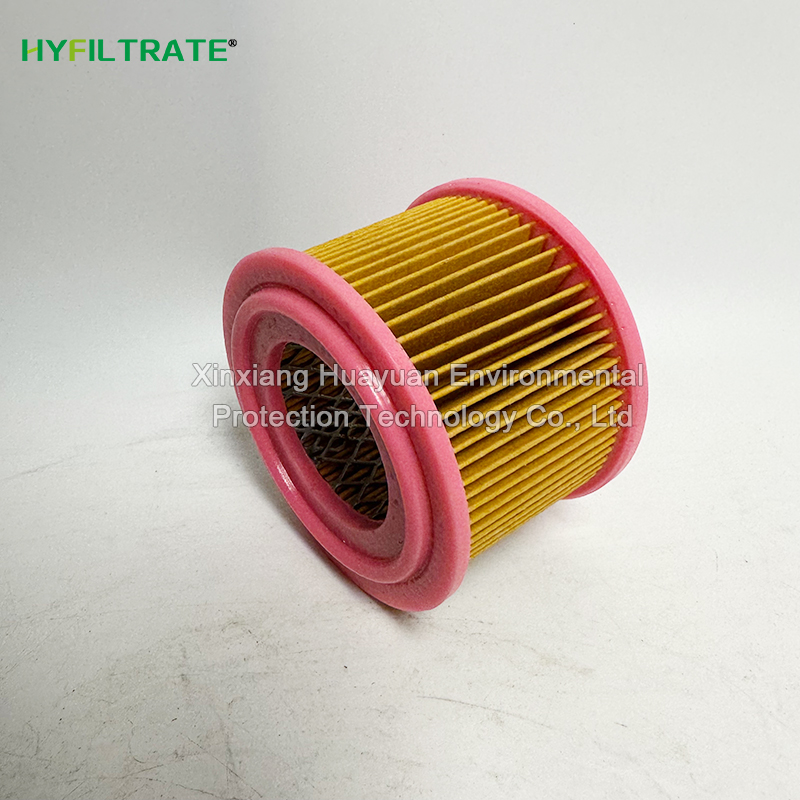

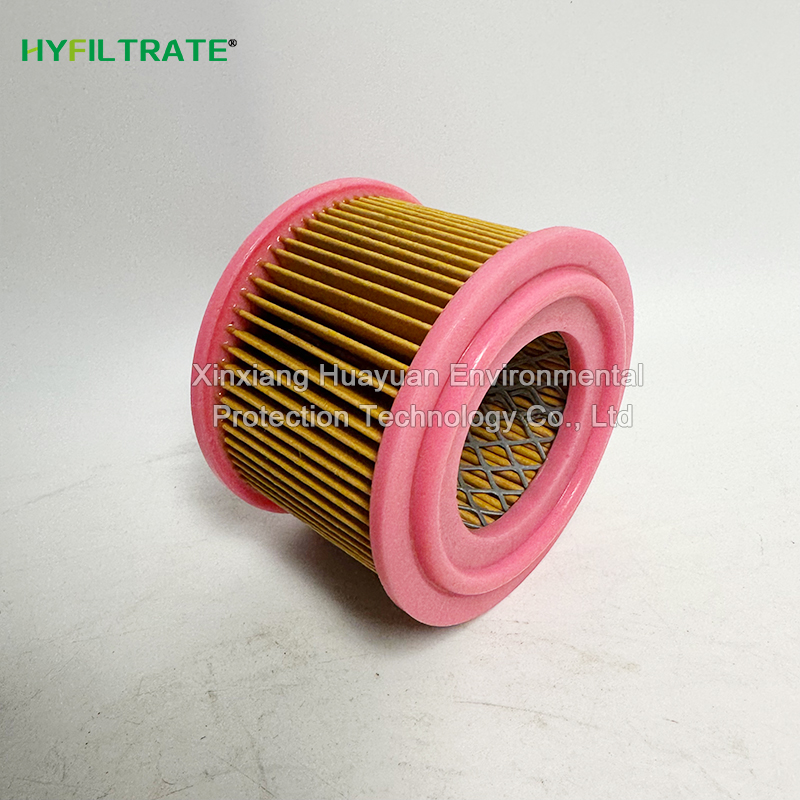

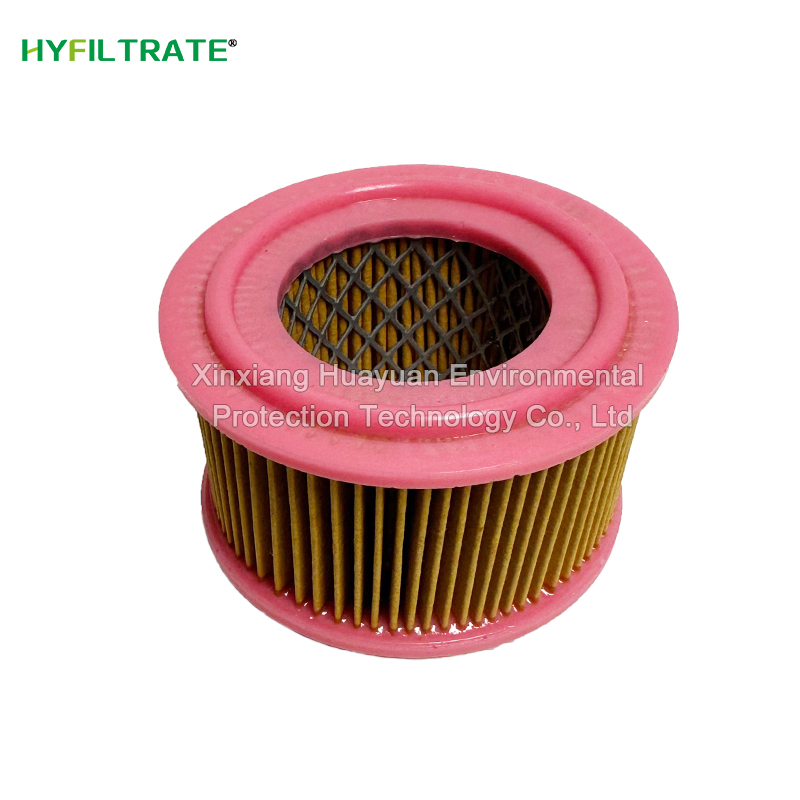

Replace Parker EAC20.C015 air filter element

The replacement Parker EAC20.C015 Air filter element has dual capabilities of dust prevention and moisture resistance, reducing the risk of water vapor entering the fuel tank with air in humid environments and causing oil emulsification. The non-metallic skeleton design simplifies the waste disposal process and reduces the cost of solid waste disposal. The regular wrinkled structure has sufficient dust holding capacity and maintains low airflow resistance under long-term breathing conditions. The end face is tightly sealed to prevent unfiltered air from entering through gaps, with a compact and easy to disassemble appearance. It continuously blocks the intrusion of external dust, protects the cleanliness of the medium inside the box, and extends the service life of hydraulic oil.

Applicable locations:

Mobile construction machinery: excavator, loader hydraulic oil tank ventilation protection unit

Mining equipment unit: underground mobile hydraulic equipment, oil tank, respirator, filtration device

Agricultural and forestry machinery: Harvesters, hydraulic system protection components for forestry equipment

Industrial hydraulic power station: fixed oil tank air balance purification unit

Other scenarios include lubrication systems, oil storage tanks, port flow hydraulic equipment, ventilation and filtration

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): EAC20.C010, EAC20.C020

Tip: There is a difference between filtration accuracy and filter material performance, and they cannot be interchanged at will.

2) Alternative model: HXQ-20 × 1.5, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, height, and positioning inner hole size must match; Polyester filter material deteriorates in performance after being dampened and cannot be washed and regenerated; It is recommended to shorten the replacement cycle for humid working conditions.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

EAC20.C015、EAC20.C010、EAC20.C020、EAC10.C015、EAC30.C015

EAC20.Q010、EAC20.C015-G、EAC20.C015-V、EAC20.C015-S、EAC20.C015P

EAC20.C012、EAC25.C015、EAC20.C015A、EAC20.C015L、EAC20.C015B
