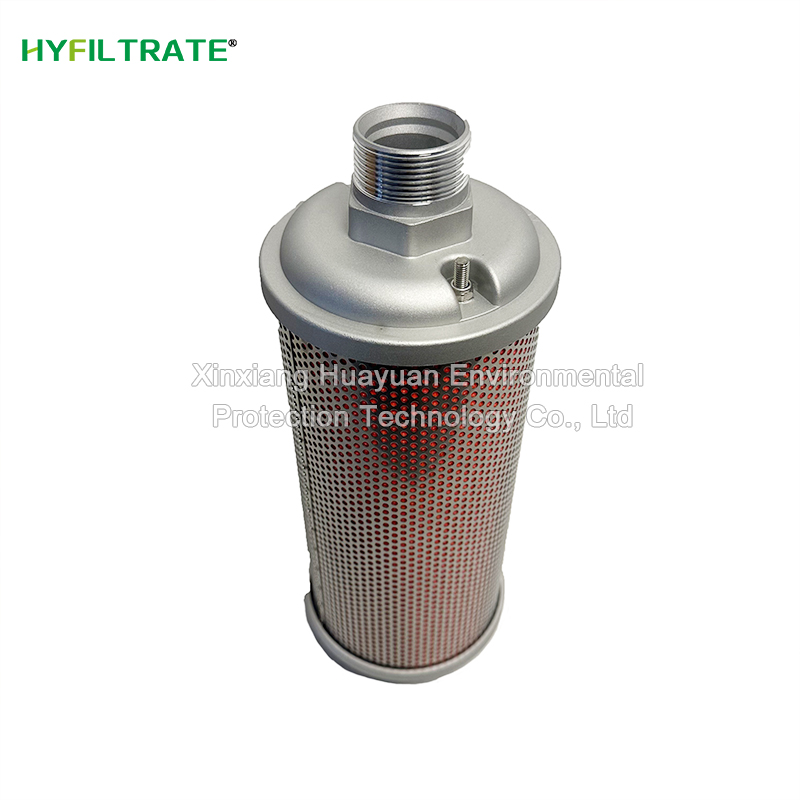

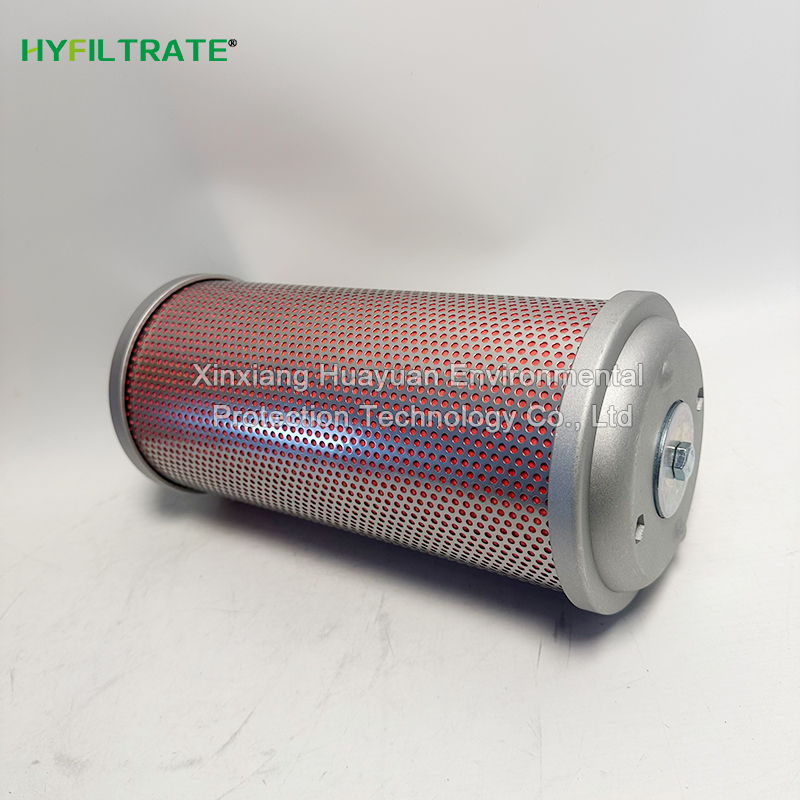

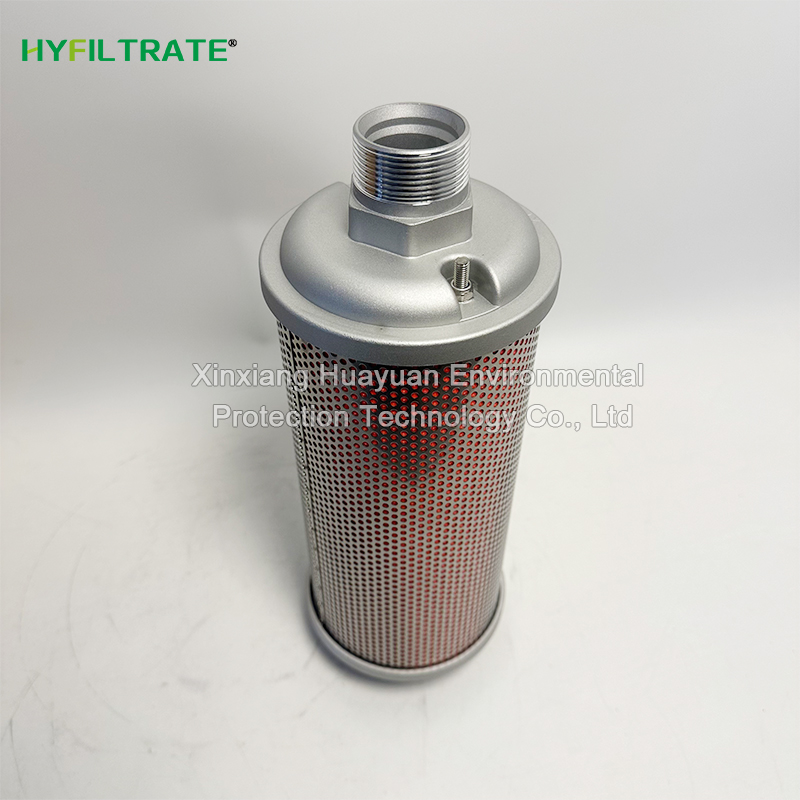

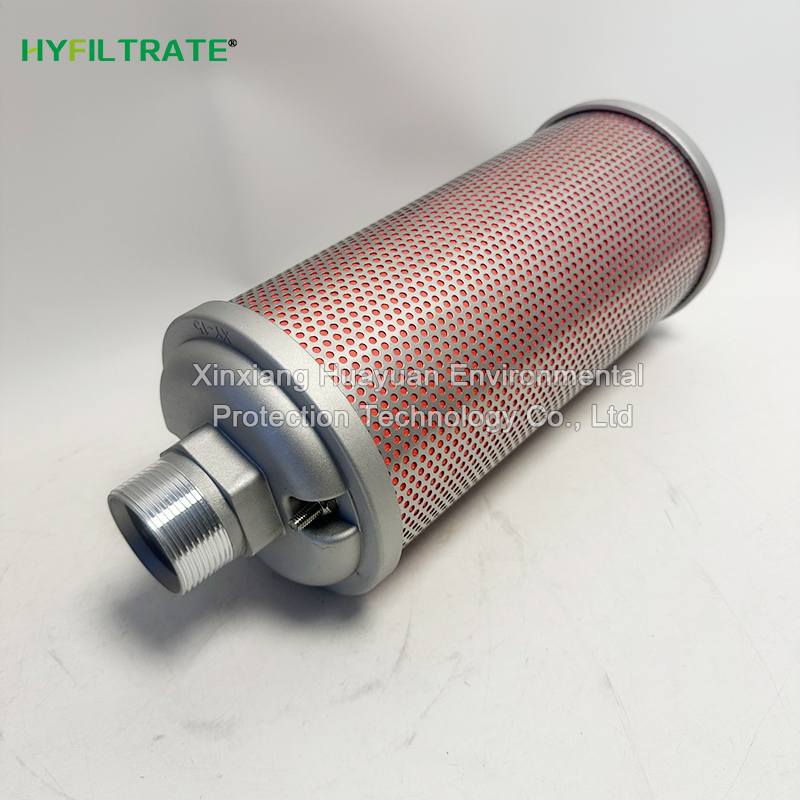

The XY-15 muffler adopts multi-layer composite sound-absorbing ultra-fine high-temperature resistant fiberglass cotton, which can reduce high-frequency exhaust noise of air compressors and dryers from 200~2000Hz by more than 30dB (A), significantly reducing the piercing and explosive sound during venting, meeting the environmental protection standards of the factory area, and protecting the hearing of employees. Moreover, the sound absorption material has a high sound absorption coefficient, a composite noise elimination structure of resistance and resistance, and the high and low frequency noise is simultaneously weakened, so the noise reduction stability is far better than that of a simple foam silencer.
Applicable locations:
Air compression station supporting: adsorption dryer regeneration exhaust silencing unit
Spray coating industry: air compressor post-treatment drying equipment exhaust noise reduction device
Electronic manufacturing: Cleanroom air supply system, dryer exhaust pipeline
General Machinery Industry: Factory Centralized Gas Supply Drying System
Exhaust system for drying equipment in pharmaceutical and food process gas sources in other scenarios
1) Same shell universal filter element (completely universal in external dimensions): XY-10, XY-20
Tip: There are differences in interfaces and flow specifications among different models, and they cannot be interchanged arbitrarily.
2) Alternative model: XYG40, with consistent external dimensions, structural parameters, and performance indicators, available for selection reference.
3) Important reminder for replacement selection: The outer diameter, total length, and thread specifications must match; Fiberglass sound-absorbing filter material cannot be washed and regenerated; If the noise increases and the exhaust is blocked, replace it in a timely manner.
Packaging and Transportation:
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
Related models:
XY-15、XY-05、XY-07、XY-10、XY-12
XY-20、XY-30、XY-60、XYG40、XYG25
XY-15A、XY-15B、XY-20A、XY-10A、XY-07A
Technical data
XY-15 muffler
Noise reduction capability: It can reduce exhaust noise by more than 30dB (A) and eliminate the harsh exhaust noise caused by high-pressure airflow
Rated working pressure: ≤ 1.0MPa (10bar) standard operating condition of compressed air system
Built in safety valve: bypass relief valve opens at a pressure of 2.0~2.2 bar; When the internal sound-absorbing cotton is blocked or the pressure difference exceeds the standard, the automatic pressure relief protection equipment needs to be replaced after pressure relief
Applicable temperature: ≤ 65~80 ℃, normal temperature compressed air scenario
Flow resistance: Low pressure drop design, which will not significantly increase system back pressure and affect the regeneration efficiency of the suction dryer
Silencing frequency: 200~2000Hz, covering the main noise frequency range of air compressor exhaust
