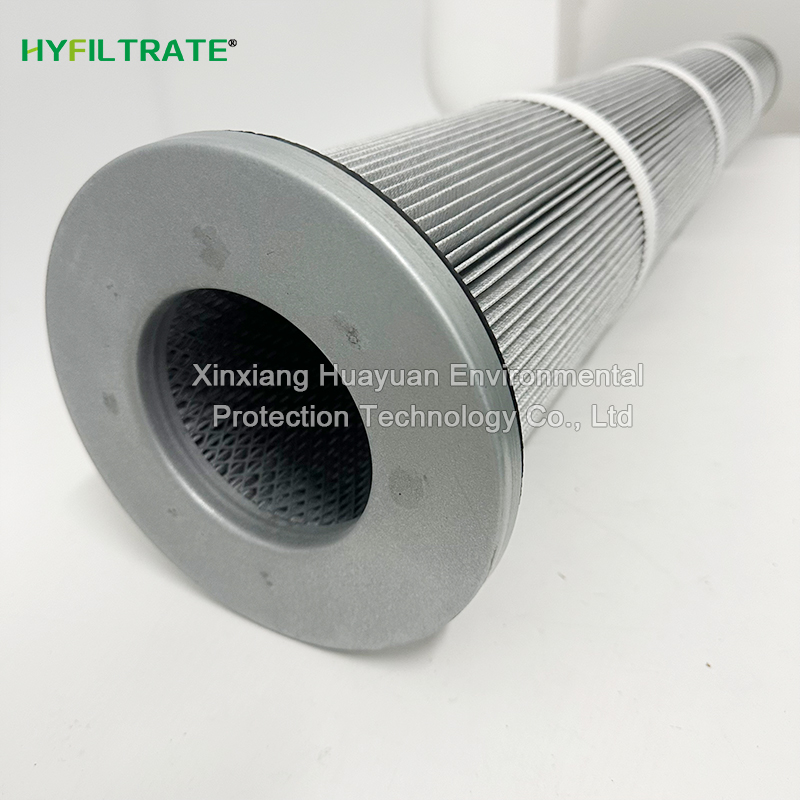

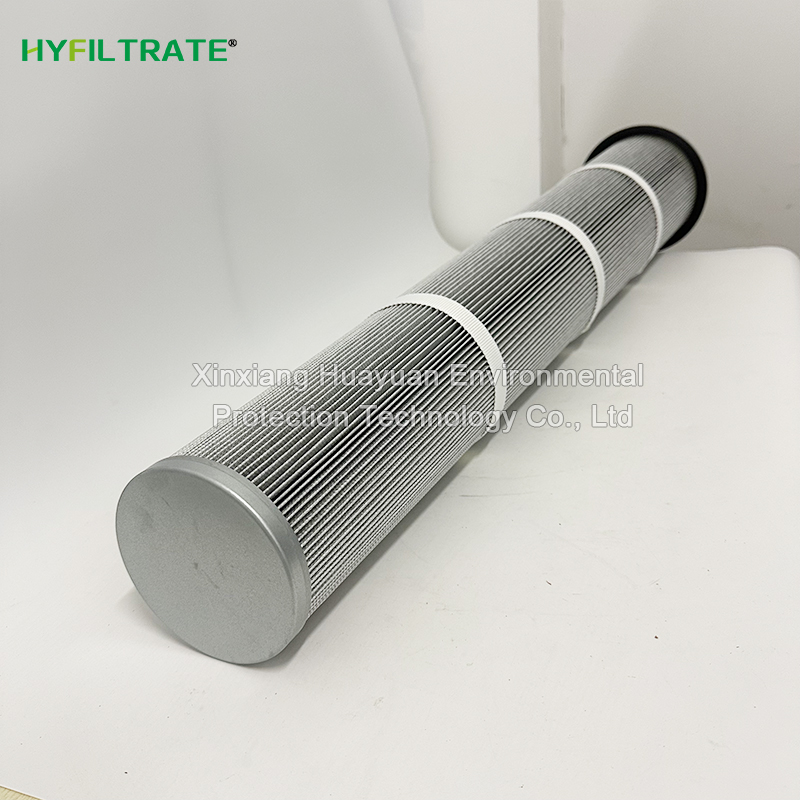

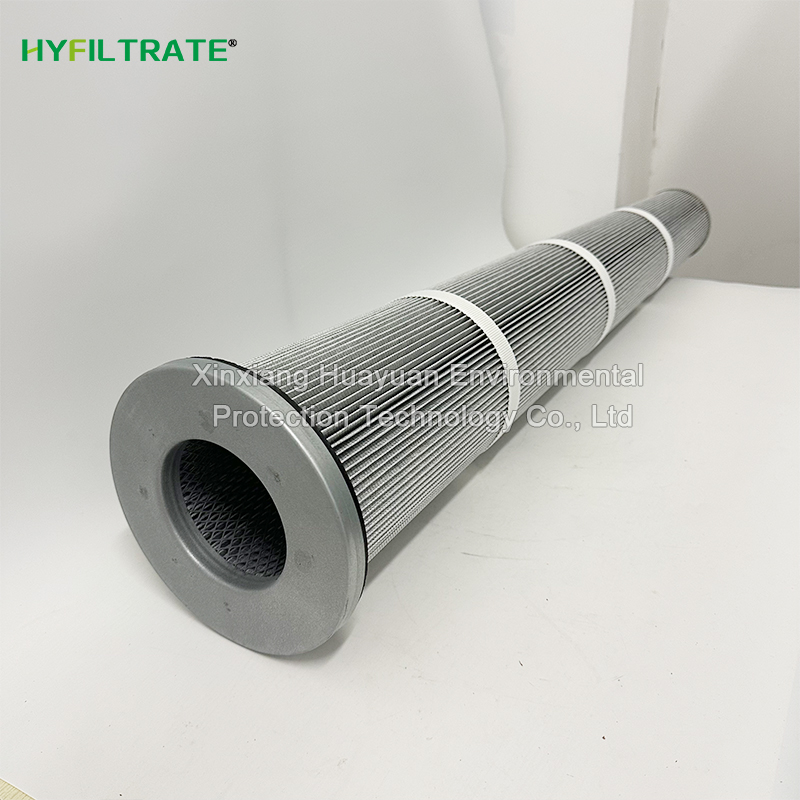

Replace Filtration Group 852 953 T115-3.5 air filter cartridge

Description:: The Replace Filtration Group 852 953 T115-3.5 air filter cartridge has sufficien

Share With:

The Replace Filtration Group 852 953 T115-3.5 Air filter cartridge has sufficient dirt holding capacity, continuously intercepting fine metal particles and oxide deposits in the fluid, maintaining stable oil circuit cleanliness standards, and reducing the risk of jamming and wear of various precision hydraulic components. The double-layer steel support cylinder enhances the overall rigidity of the filter element and maintains structural stability under long-term alternating pressure conditions. The integrated sealed end cap reduces leakage hazards, and the compact cylinder layout is flexible, which can extend the operation and maintenance cycle and ensure the continuous and stable operation of the entire fluid power system.

Applicable locations:

Energy sector: Hydraulic control system for wind turbines, lubricating oil purification treatment device

Metallurgical industry: High pressure hydraulic circulation circuit in hot rolling production lines and continuous casting equipment

Engineering equipment: shield tunneling equipment, mining machinery, large lifting machinery oil circuit

Intelligent manufacturing: centralized hydraulic workstation, die-casting unit, high-precision CNC machining equipment

Other scenarios include ship auxiliary hydraulic systems, industrial fluid circulation purification devices

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

852 953 T115-3.5、852 953 T115-6、852 953 T115-10、852 953 DRG10、852 953 DRG25

852 903 T115-3.5、852 903 T115-6、852 903 T115-10、852 903 DRG10、852 903 DRG25

852 907 T115-3.5、852 907 T115-6、852 907 T115-10、852 907 DRG10、852 907 DRG25

Technical data

Replace Filtration Group 852 953 T115-3.5 air filter cartridge

Product type: Cylinder type built-in folding fiberglass hydraulic precision filter cartridge

Filter material configuration: Multi layer gradient pore glass fiber composite medium, fluid completes the filtration process from the outside to the inside

Filtering accuracy: 3.5 μ m, effectively capturing fine solid pollutants inside the fluid

Capable of withstanding a maximum pressure difference of 21 bar, effectively preventing the filter layer from being compressed, wrinkled, torn, or damaged

Sealing material: Polyurethane end cap paired with NBR rubber sealing ring, suitable for various industrial fluid environments

Suitable working range: -20 ℃ to+105 ℃

Supporting structure: perforated stainless steel inner and outer protective sleeves, buffering system for instantaneous pressure fluctuations and impacts

Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol based flame retardant working medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
