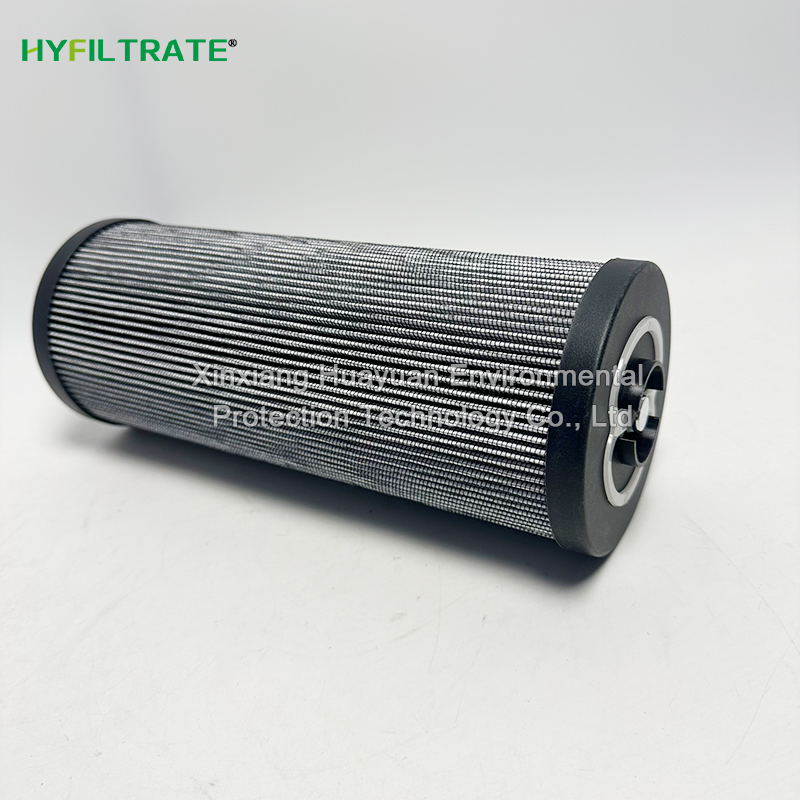

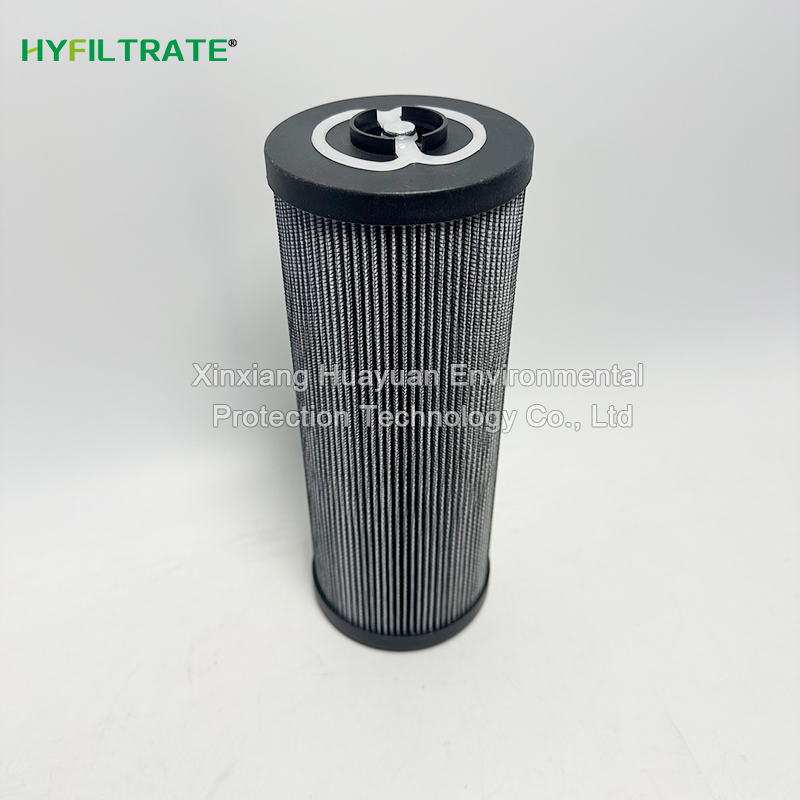

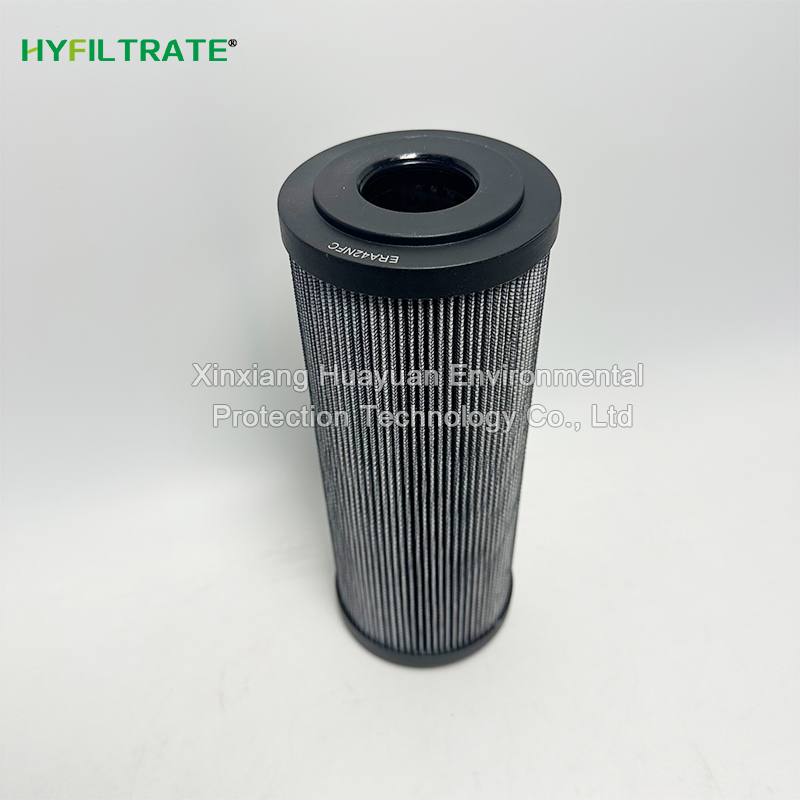

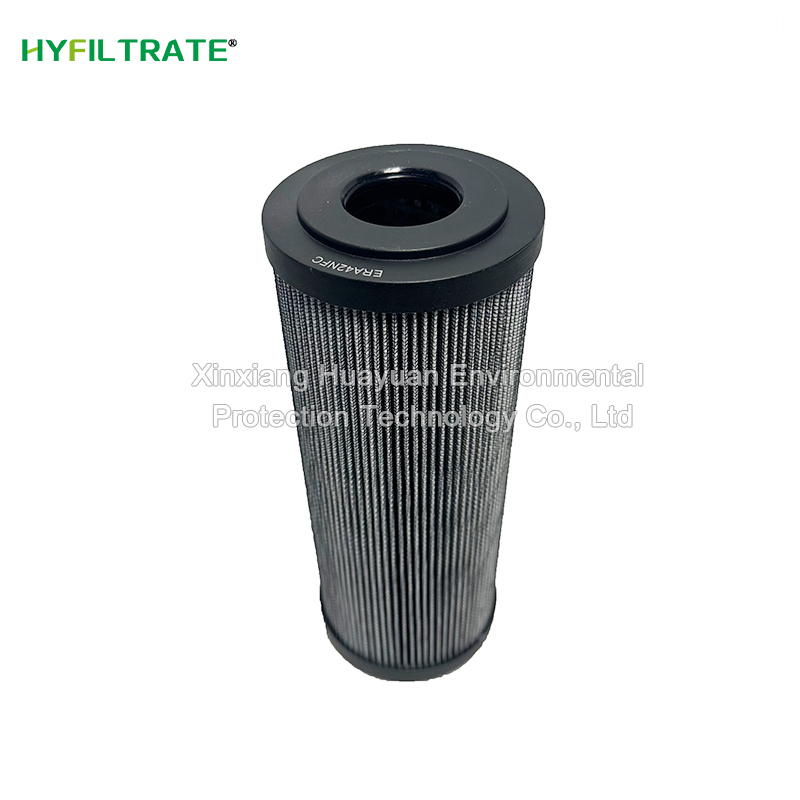

The Replace UFI ERA42NFC hydraulic oil filter element has a considerable space f
Model: ERA42NFC
Filtration Accuracy: 12μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 70mm
High: 268mm
The Replace UFI ERA42NFC Hydraulic oil filter element has a considerable space for dirt containment, continuously capturing metal debris, rust deposits, and gum pollutants inside the oil circuit, maintaining a stable and clean fluid state, and reducing the risk of wear and jamming of various hydraulic components. The steel sleeve stabilizes the filter material structure and maintains its shape stability under alternating pressure environment. Integrated end caps ensure sealing effectiveness and reduce medium leakage issues. The compact cylinder body facilitates the layout around the fuel tank, effectively extending maintenance intervals and ensuring the stable and continuous operation of the entire fluid system.
Engineering machinery field: earthwork construction equipment, mining mobile machinery hydraulic return oil pipeline
Energy industry: wind turbine auxiliary hydraulic system, lubricating oil circulation device
General manufacturing: small and medium-sized hydraulic workstations, injection molding units, die-casting production equipment
Metallurgical industry: equipment assisted hydraulic circulation, cooling and lubrication pipeline filtration unit
Other scenarios include mobile hydraulic equipment and industrial lubricating fluid purification systems
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
ERA42NFC、ERA42NCC、ERA42NFA、ERA42NFB、ERA42NCD
ERA41NFC、ERA41NCC、ERA41NFA、ERA41NFB、ERA41NCD
ERA43NFC、ERA43NCC、ERA43NFA、ERA43NFB、ERA43NCD
Replace UFI ERA42NFC hydraulic oil filter element
Product Type: Folding Fiberglass Hydraulic Filter Cartridge for Return Oil Pipeline
Filter material configuration: multi-layer gradient pore micro glass fiber medium, fluid flow direction from outside to inside
Filtering accuracy: 10 μ m, blocking fine solid impurity particles in the fluid
Capable of withstanding a maximum pressure difference of 10 bar to prevent the filter layer from being compressed, twisted, or damaged
Sealing material: NBR nitrile rubber sealing ring, suitable for various industrial hydraulic fluids
Suitable working range: -25 ℃ to+110 ℃
Supporting structure: Galvanized steel punched inner and outer sleeves to alleviate frequent system pressure impacts
Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
