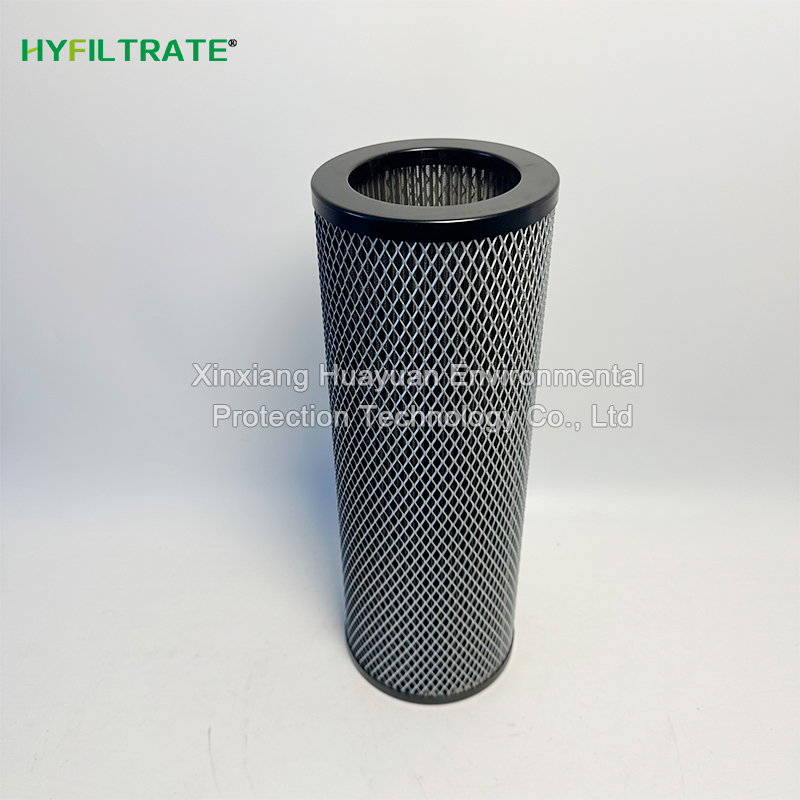

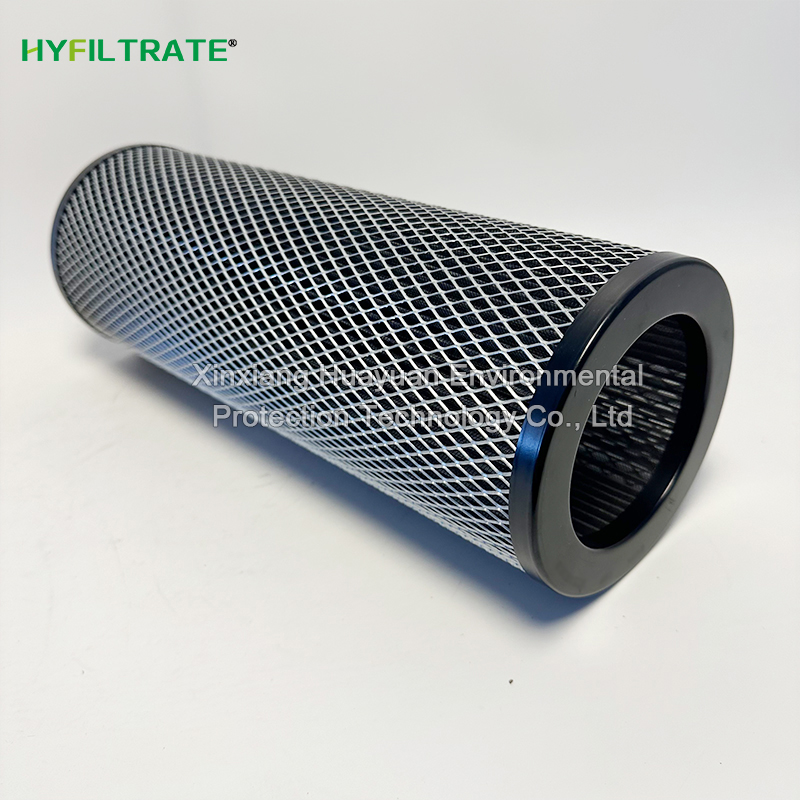

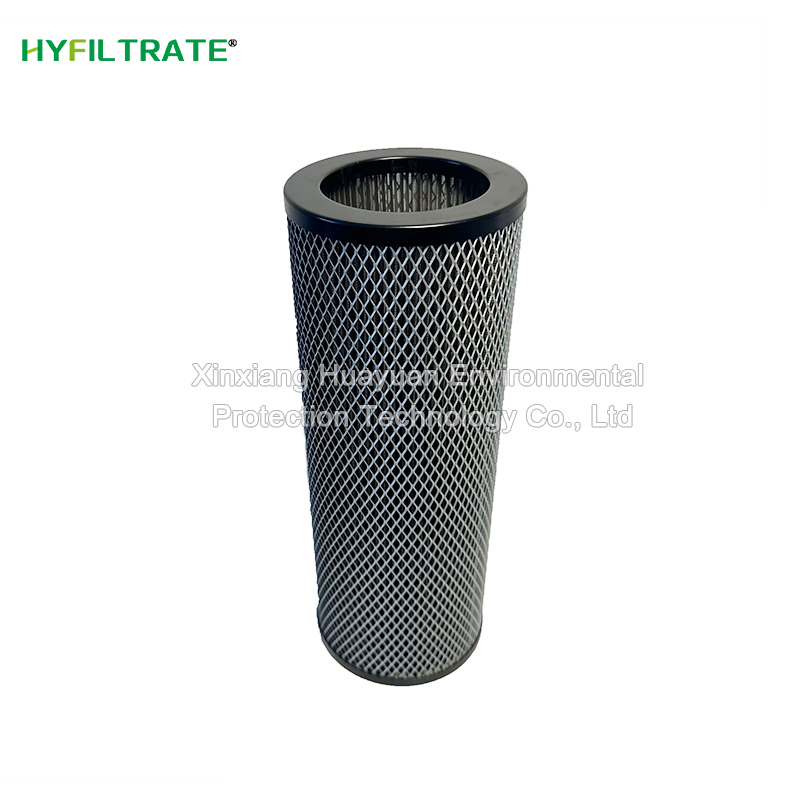

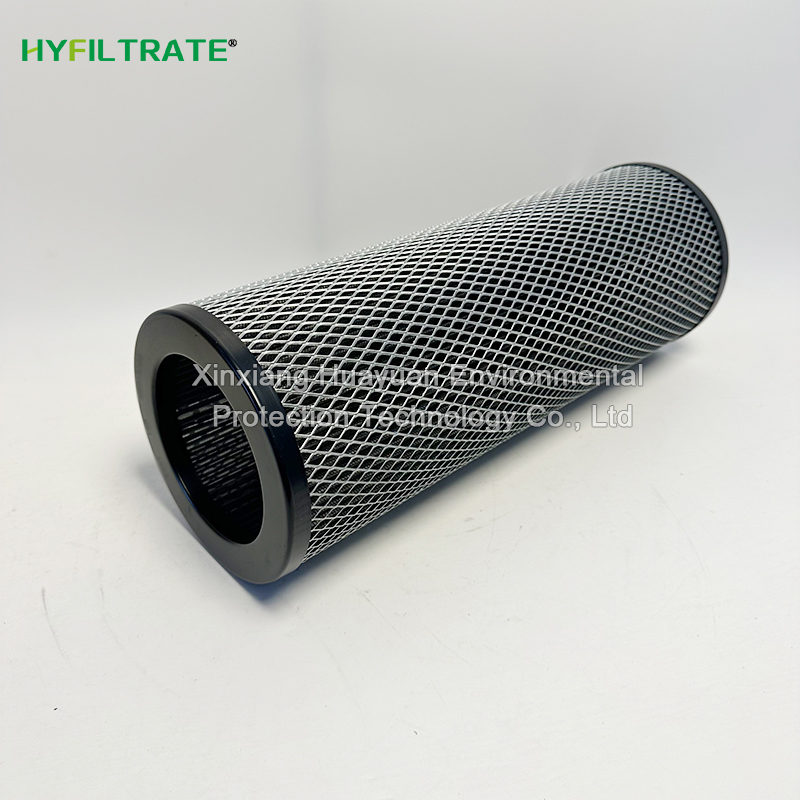

The Replace UFI ESC61GSK hydraulic oil filter element effectively intercepts lar
Model: ESC61GSK
Filtration Accuracy: 12μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 127mm
High: 205mm
The Replace UFI ESC61GSK Hydraulic oil filter element effectively intercepts large rust particles, welding slag, and hard abrasive debris in hydraulic oil, and is commonly used for pre-protection filtration in hydraulic systems. The Metal Filter screen has high structural strength, withstands flow impact, and prevents fiber shedding that could contaminate the oil circuit; it offers stable flow resistance, is washable and reusable, reducing long-term consumable costs. The standard plug-in structure facilitates convenient disassembly and assembly, effectively reducing the load on high-precision fiberglass filter cartridges at the back end, protecting hydraulic pumps and servo valve components, minimizing system downtime due to faults, and is suitable for industrial hydraulic circulation systems with harsh operating conditions.
Power industry: turbine oil lubrication station, hydraulic lubrication circuit of large-scale units
Metallurgical industry: pre-filtration of hydraulic systems for rolling mills and continuous casting equipment
General manufacturing: large hydraulic stations, die-casting equipment, production line hydraulic systems
Construction machinery: mining equipment, shield machines, hydraulic oil circuits of lifting machinery
Other scenarios: ship hydraulic system, lubricating oil station, hydraulic test bench
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
ESC61GSK, ESC61NFK, ESC61FDK, ESC41GSK, ESC41NFK
ESC31GSK, ESC31NFB, ESC71GSK, ESC71NFK, ESC81GSK
ESC51GSK, ESC51NFB, ESC21GSK, ESC21NFK, ESC61M60SK
Replace UFI ESC61GSK hydraulic oil filter element
Filter material: multi-layer folded stainless steel woven filter mesh; flow direction: from outside to inside
Filtration accuracy: 25μm; burst pressure resistance: 21bar
Seal: NBR (Nitrile Butadiene Rubber), with FPM (Fluororubber) as an option
Operating temperature: -25℃～+110℃
Support structure: Galvanized steel internal and external punching support framework
Compatible medium: mineral hydraulic oil, lubricating oil, water-glycol medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
