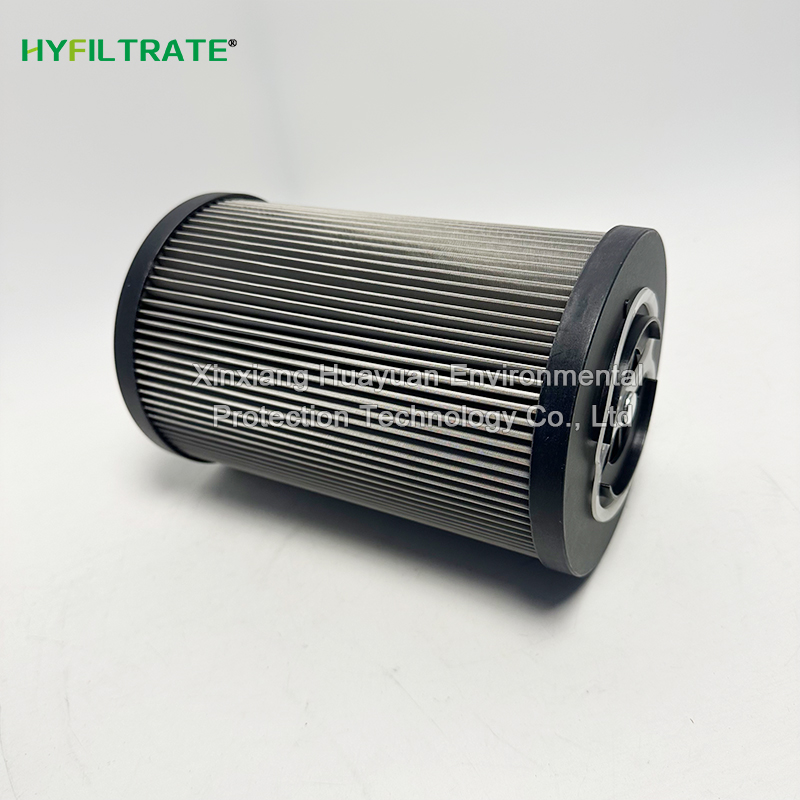

The Replace UFI ERA52NFC hydraulic oil filter element has sufficient dirt holdin
Model: ERA52NFC
Filtration Accuracy: 12μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 126.5mm
High: 322mm
The Replace UFI ERA52NFC Hydraulic oil filter element has sufficient dirt holding capacity, continuously intercepting metal debris, oxide deposits, and colloidal impurities in the oil circuit, maintaining stable fluid cleanliness, and reducing the risk of wear and jamming of various hydraulic components. Reinforced filter layer structure with steel support cylinder to maintain stable shape in the face of frequent pressure fluctuations. The integrated end cap ensures reliable sealing and reduces medium leakage. The compact cylindrical structure facilitates equipment layout, effectively extends maintenance cycles, and ensures the smooth and continuous operation of the entire fluid power system.
In the field of construction machinery: road construction equipment, hydraulic circulation oil circuit for mobile mining machines
Energy industry: hydraulic system and lubricating oil circulation device for wind turbine accessories
General manufacturing: small and medium-sized hydraulic workstations, injection molding equipment, die-casting production lines
Metallurgical industry: auxiliary hydraulic circulation system, cooling and lubrication pipeline filtration unit
Other scenarios include mobile hydraulic equipment, industrial fluid lubrication and purification systems
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
ERA52NFC、ERA52NCC、ERA52NFA、ERA52NFB、ERA52NCD
ERA51NFC、ERA51NCC、ERA51NFA、ERA51NFB、ERA51NCD
ERA53NFC、ERA53NCC、ERA53NFA、ERA53NFB、ERA53NCD

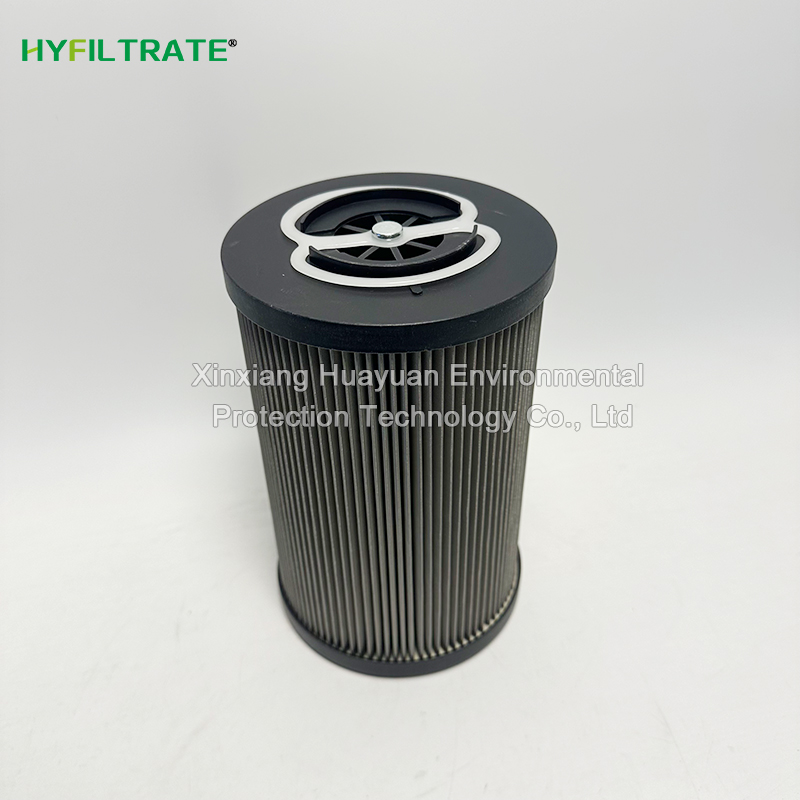

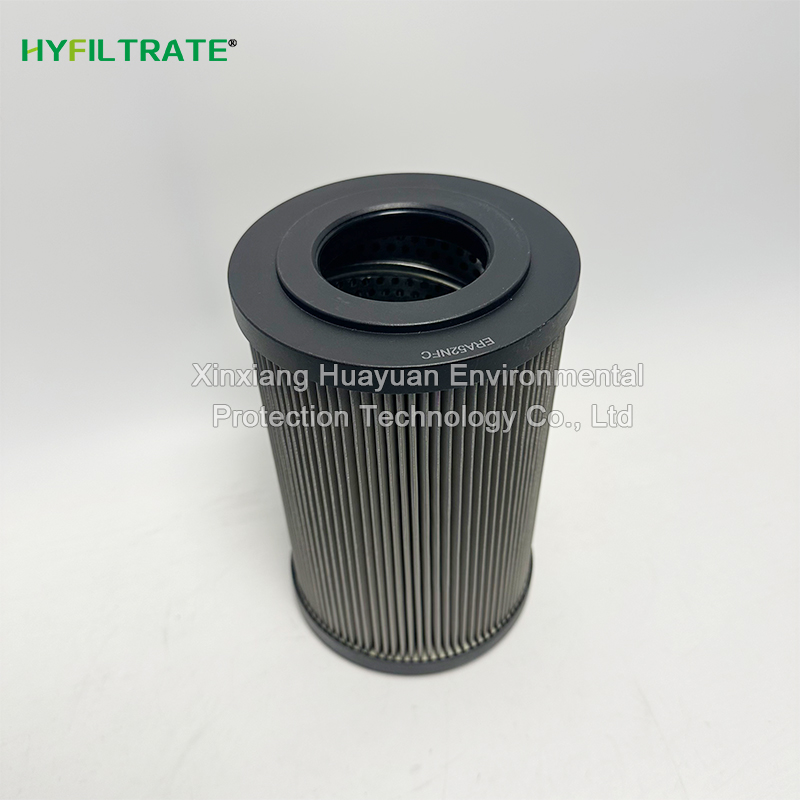

Replace UFI ERA52NFC hydraulic oil filter element
Product Type: Folding Fiberglass Hydraulic Filter Cartridge for Return Oil Pipeline
Filter material configuration: Multi layer gradient pore size micro glass fiber media, fluid is filtered from the outside to the inside
Filtering accuracy: 10 μ m, effectively capturing fine solid particles inside the fluid
Can withstand a maximum pressure difference of 10 bar, avoiding the problem of filter layer wrinkling and damage under pressure
Sealing material: NBR nitrile rubber sealing ring, suitable for various industrial hydraulic media
Suitable working range: -25 ℃ to+110 ℃
Supporting structure: Galvanized steel punched inner and outer sleeves, buffering system pressure fluctuation impact
Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
